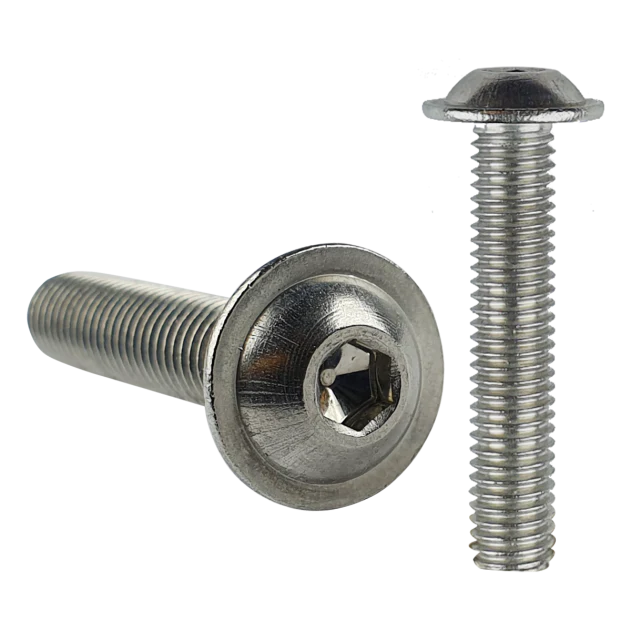

M5 x 80mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Stainless Steel Flanged Socket Button Head Screws M5 x 80mm

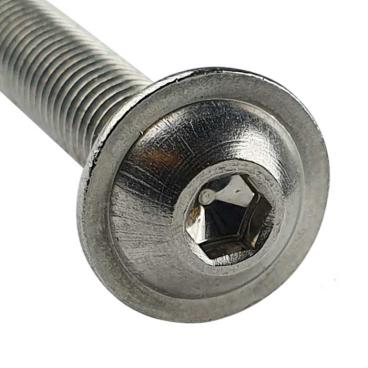

M5 x 80mm flanged socket button head machine screw designed with a low rounded head free of sharp or pointed edges, ideal for use where safety and an aesthetic finish is required.

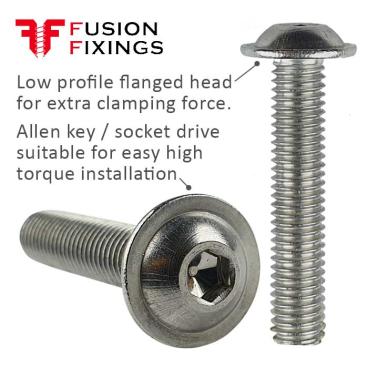

M5 button head screw with a flanged head and Allen key / socket drive, suitable for high torque installation.

The use of a flanged head eliminates the need for a separate washer, protects the materials surface, covers odd sized holes, and allows for a stronger grip when tightened.

Manufactured in A2 stainless steel also makes them corrosion resistant and ideal for both internal and external applications.

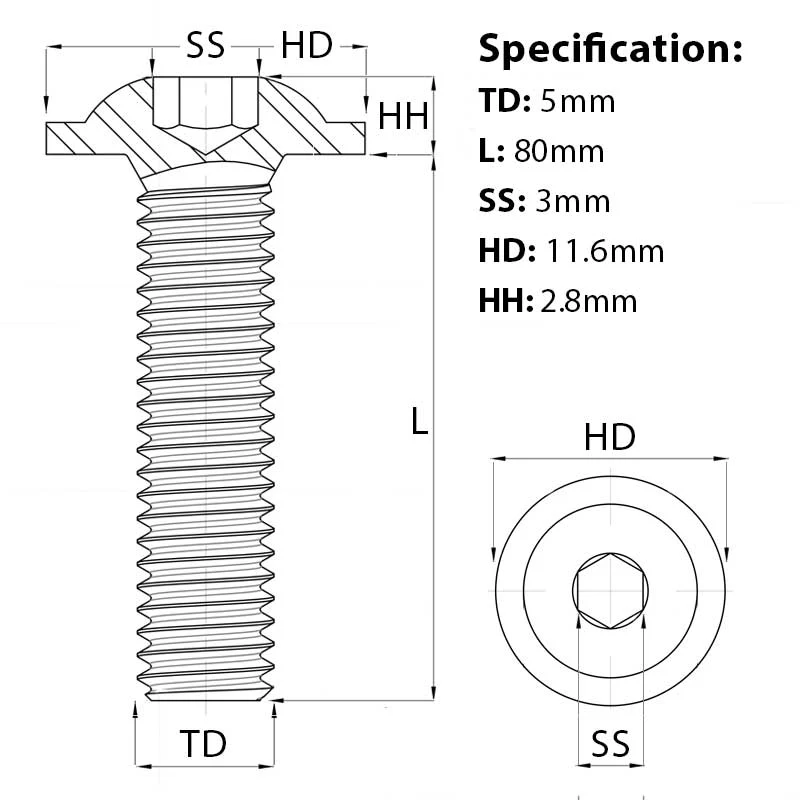

M5 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 5mm
• Length (L): 80mm
• Head Diameter (HD): 11.6mm
• Head Height (HH): 2.8mm
• Socket Size (SS): 3mm
• Material: Corrosion Resistant A2 Stainless Steel

The range of flanged button head machine screws is growing at Fusion Fixings. Great prices and bulk discounts across the range.
