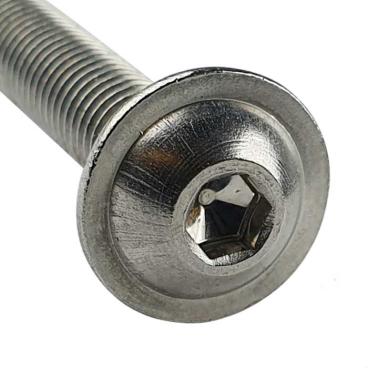

M3 x 20mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Stainless Steel Flanged Socket Button Screws M3 x 20mm

M3 x 20mm machine screw with a flanged rounded button head and a socket recess. Ideal where safety and an aesthetic finish is a requirement.

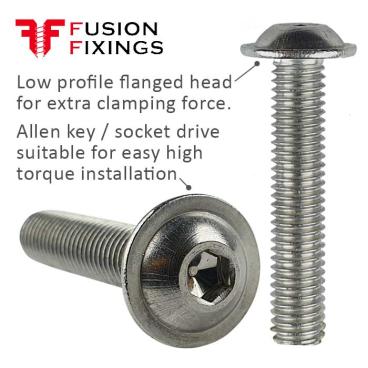

A button head machine screw that has a flanged head eliminating the need for a separate washer. This also helps spread the tightening pressure over a wider area and protects the materials surface.

A socket button head screw with a smooth rounded head free of sharp or pointed edges, making them ideal from a safety and aesthetic perspective. The socket recess also allows installation with a range of conventional Allen (socket) drives, which sees them widely used.

Ideal for use in both internal and external applications due to being manufactured from corrosion resistant A2 stainless steel.

M3 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 3mm
• Length (L): 20mm
• Head Diameter (HD): 7mm
• Head Height (HH): 1.7mm
• Socket Size (SS): 2mm
• Material: Corrosion Resistant A2 Stainless Steel, ISO 7380-2

Fusion Fixings has a growing range of flanged socket button head machine screws in stock.
