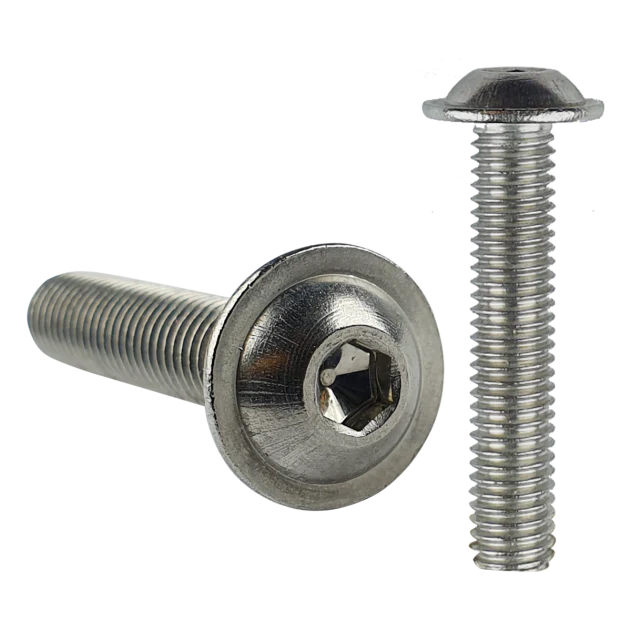

M3 x 12mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Flanged Socket Button Head Screw M3 x 12mm

12mm quality machine screw with a flanged rounded button head and a socket recess. Often used where safety and an aesthetic finish is required.

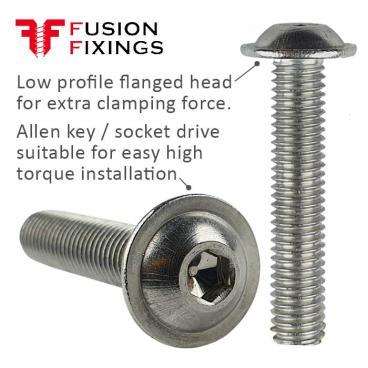

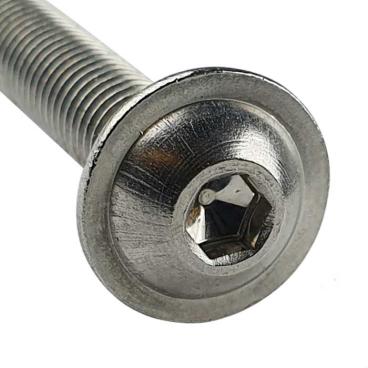

This button head screw has a flanged head which eliminates the need for a separate washer and helps spread the tightening pressure over a wider area. Using a socket recess also allows installation with a range of conventional Allen (socket) drives, which sees them widely used.

A socket button head screw with a smooth rounded head free of sharp or pointed edges, making them ideal from a safety and aesthetic perspective.

Ideal for use in both internal and external applications due to being manufactured from corrosion resistant A2 stainless steel.

M3 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 3mm
• Length (L): 12mm
• Head Diameter (HD): 7mm
• Head Height (HH): 1.7mm
• Socket Size (SS): 2mm
• Material: Corrosion Resistant A2 Stainless Steel, ISO 7380-2

Part of a growing range of machine screws held in stock at Fusion Fixings.
