M5 x 16mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Corrosion Resistant Flanged Socket Button Head Screw

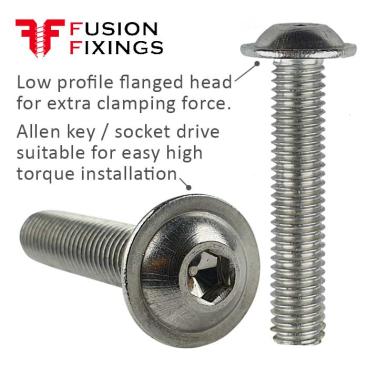

M5 button head machine screw with a flanged head and Allen key / socket drive suitable for high torque installation.

The M5 x 16mm flanged, socket, button head screw is designed specifically with a low rounded head free of sharp or pointed edges. This sees them used where safety and an aesthetic finish is required.

The flanged head also eliminates the need for a washer and sees them widely used across many industries.

Corrosion resistant due to being manufactured in A2 stainless steel which make them ideal for both internal and external applications.

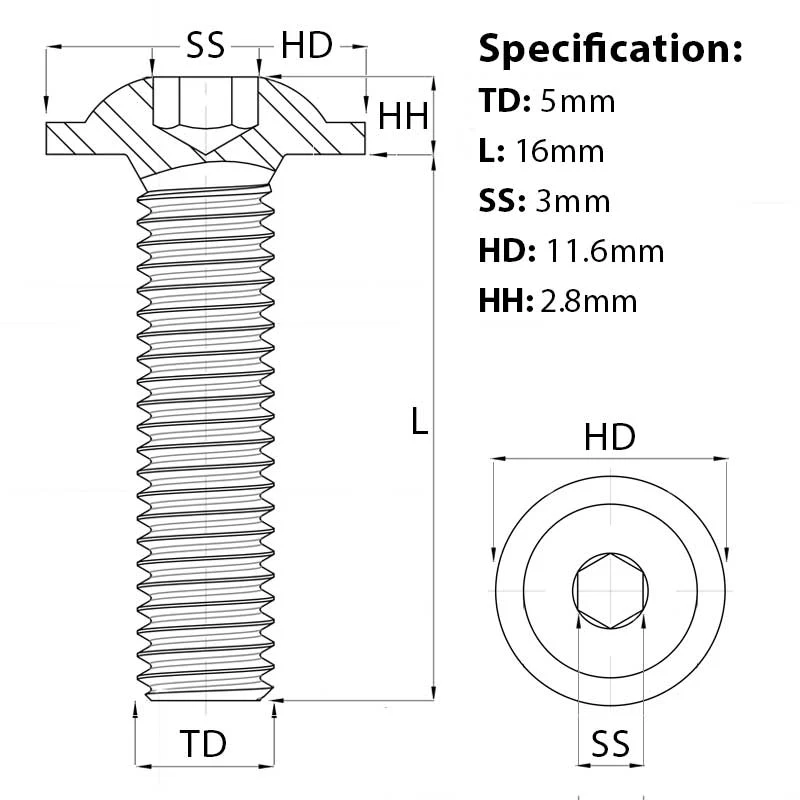

M5 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 5mm
• Length (L): 16mm
• Head Diameter (HD): 11.6mm
• Head Height (HH): 2.8mm
• Socket Size (SS): 3mm
• Material: Corrosion Resistant A2 Stainless Steel
