M4 x 4mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Stainless Steel Flanged Socket Button Screw M4 x 4mm

M4 x 4mm machine screw with a flanged button head and socket recess, ideal where safety and an aesthetic finish is required.

Using a socket recess for installation with a range of conventional Allen (socket) drives and a flanged head that eliminates the need for a washer.

The M4 flanged, socket, button head screw is designed specifically with a low rounded head free of sharp or pointed edges, making them ideal from a safety and aesthetic perspective.

The integrated flange eliminates the need for a separate washer and helps spread the fixing load over a wider area.

Manufactured form corrosion resistant A2 stainless steel which offers a high level of corrosion resistance allowing flexibility in their use for both internal and external applications.

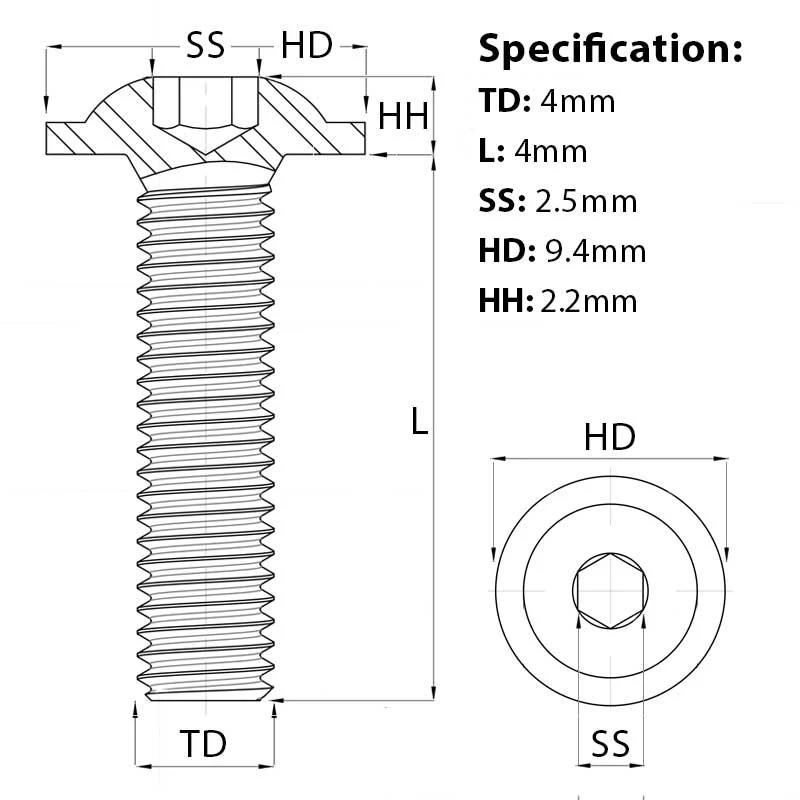

M4 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 4mm
• Length (L): 4mm
• Head Diameter (HD): 9.4mm
• Head Height (HH): 2.2mm
• Socket Size (SS): 2.5mm
• Material: Corrosion Resistant A2 Stainless Steel

An M4 machine screw with a flanged socket button head, part of a wider range of flanged machine screws available with bulk discounts across the range.
