M4 x 30mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Stainless Steel Flanged Socket Button Head Screws M4 x 30mm

Widely used flanged button head machine screw with an Allen key / socket drive suitable for high torque installation. Used primarily where safety and an aesthetic finish are a requirement.

The flanged head eliminates the need for a washer, spreads the tightening force across a wider area, and protects the materials surface. This sees them widely used across many industries.

The M4 x 30mm flanged socket button head screw is designed specifically with a low rounded head free of sharp or pointed edges. This sees them used in many situations where safety and an aesthetic finish is needed.

Manufactured form A2 stainless steel which offers a high level of corrosion resistance allowing flexibility in their use for both internal and external applications.

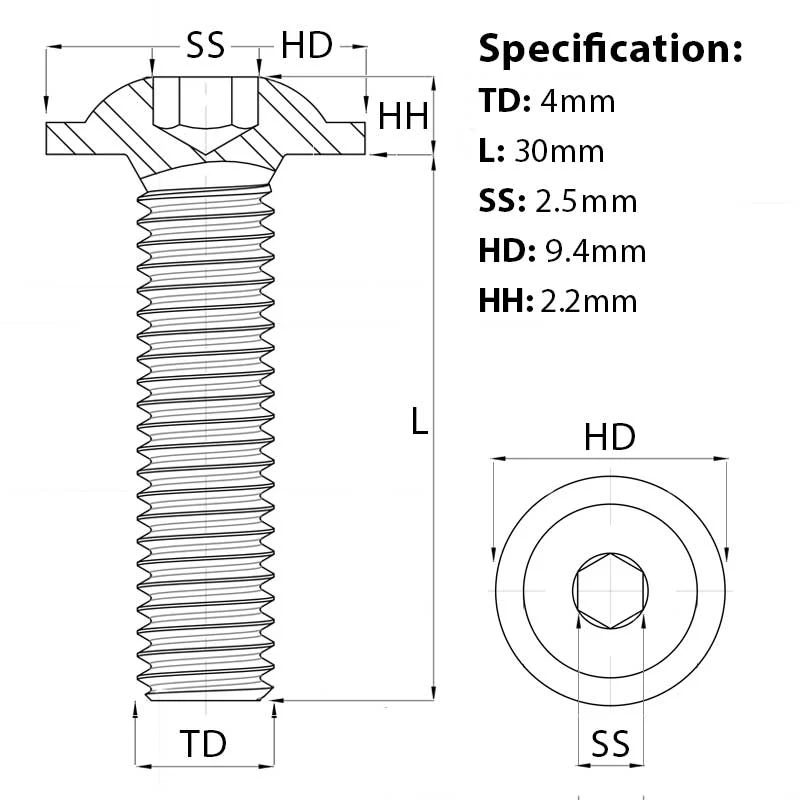

30mm Flanged Socket Button Head Screw Specification:

• Diameter (TD): 4mm
• Length (L): 30mm
• Head Diameter (HD): 9.4mm
• Head Height (HH): 2.2mm
• Socket Size (SS): 2.5mm
• Material: Corrosion Resistant A2 Stainless Steel

Corrosion resistant M4 machine screw with a flanged socket button head. Part of a wider range of flanged machine screws available with bulk discounts across the range.

Quantities from just one to as many as you like with Fusion Fixings.
