M3 x 50mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Stainless Steel Flanged Socket Button Head Screw M3 x 50mm

Corrosion resistant, stainless steel machine screw with a flanged rounded button head and a socket recess. Ideal for when the fixing is on show with safety and an aesthetic finish being a requirement.

M3 x 50mm button head machine screw that has a flanged head eliminating the need for a separate washer. This helps spread the tightening pressure over a wider area and protects the materials surface.

The socket recess on this button head screw allows installation with a range of conventional Allen (socket) drives, which sees them widely used.

A versatile machine screw with flexibility for use in both internal and external applications due to being manufactured from corrosion resistant A2 stainless steel.

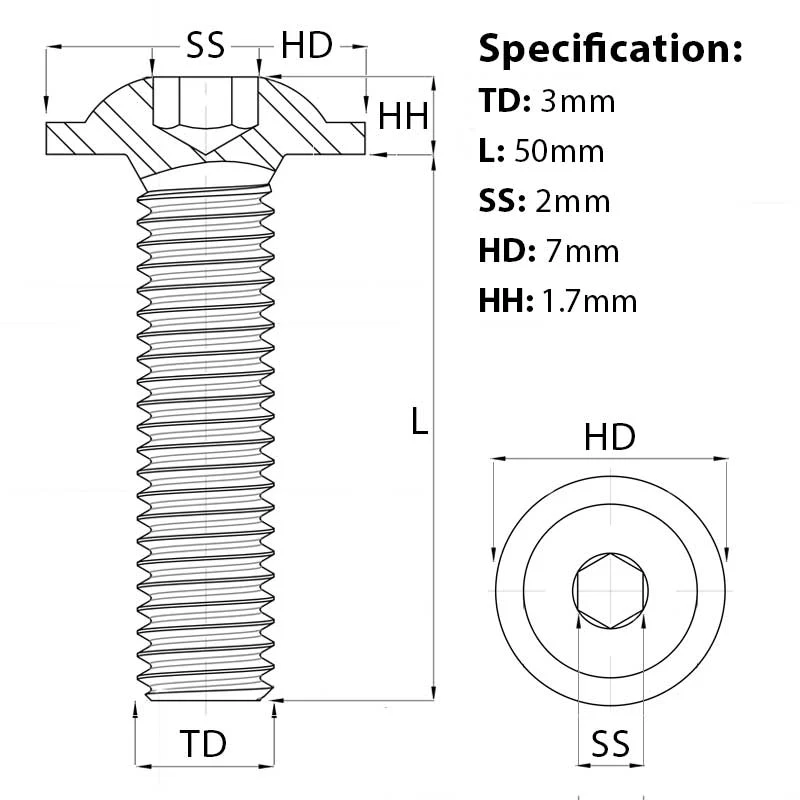

M3 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 3mm
• Length (L): 50mm
• Head Diameter (HD): 7mm
• Head Height (HH): 1.7mm
• Socket Size (SS): 2mm
• Material: Corrosion Resistant A2 Stainless Steel, ISO 7380-2

Fusion Fixings has a growing range of flanged socket button head machine screws in stock, with bright zinc plated and self-colour varieties available.
