M3 x 25mm Flanged Socket Button Head Screw A2 Stainless ISO 7380-2

Stainless Steel Flanged Socket Button Screws M3 x 25mm

Corrosion resistant M3 x 25mm machine screw with a flanged rounded button head and a socket recess. Ideal for when the fixing is on show with safety and an aesthetic finish being a requirement.

A button head machine screw that has a flanged head eliminating the need for a separate washer. This also helps spread the tightening pressure over a wider area and protects the materials surface.

The socket recess allows installation with a range of conventional Allen (socket) drives, which sees them widely used.

A versatile machine screw ideal for use in both internal and external applications due to being manufactured from corrosion resistant A2 stainless steel.

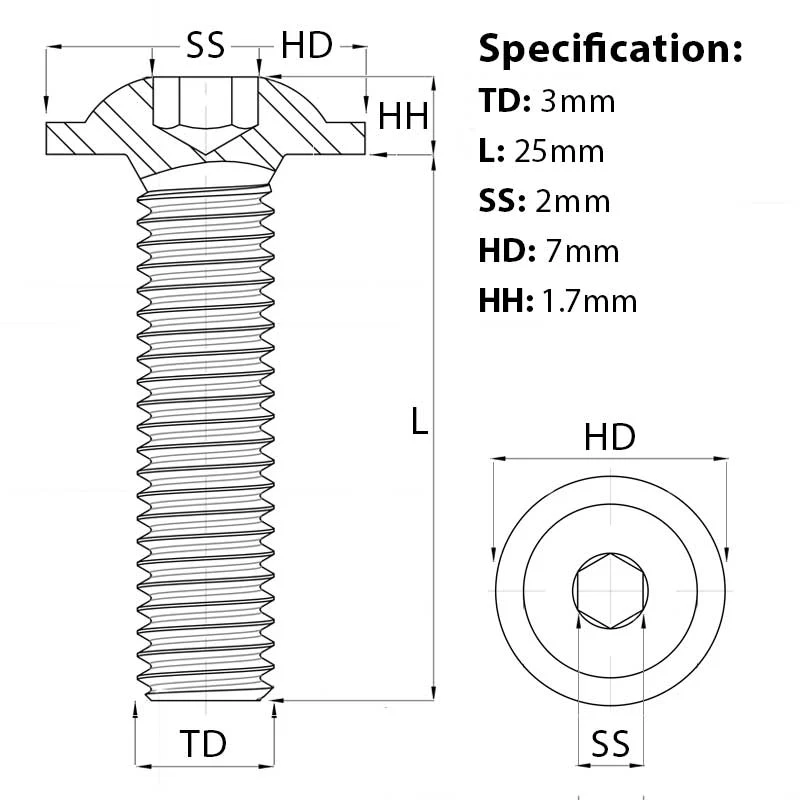

M3 Flanged Socket Button Head Screw Specification:

• Diameter (TD): 3mm
• Length (L): 25mm
• Head Diameter (HD): 7mm
• Head Height (HH): 1.7mm
• Socket Size (SS): 2mm
• Material: Corrosion Resistant A2 Stainless Steel, ISO 7380-2

Fusion Fixings has a growing range of flanged socket button head machine screws in stock.
