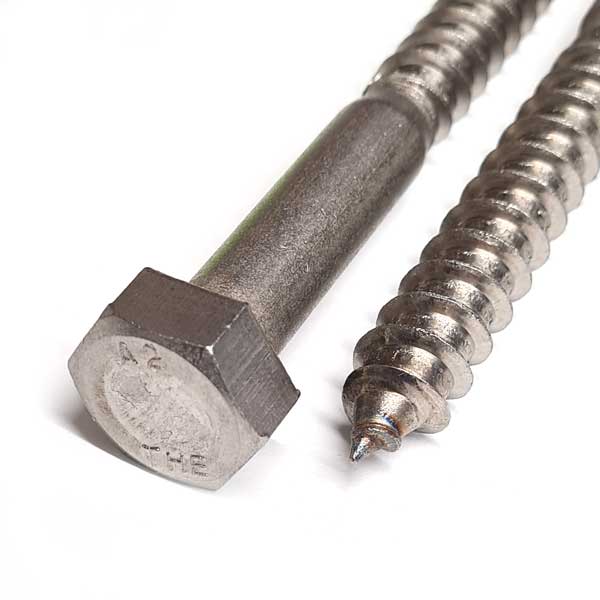

M6 x 75mm Coach Screw A2 Stainless Steel DIN 571

Heavy Duty, Corrosion Resistant Coach Screw

Strong, robust, and easy to apply makes the coach screw widely used. Specifically designed for heavy duty timber applications.

The M6 x 75mm coach screw is manufactured in A2 stainless steel and offers a great level of resistance to corrosion making it ideal for internal and external use.

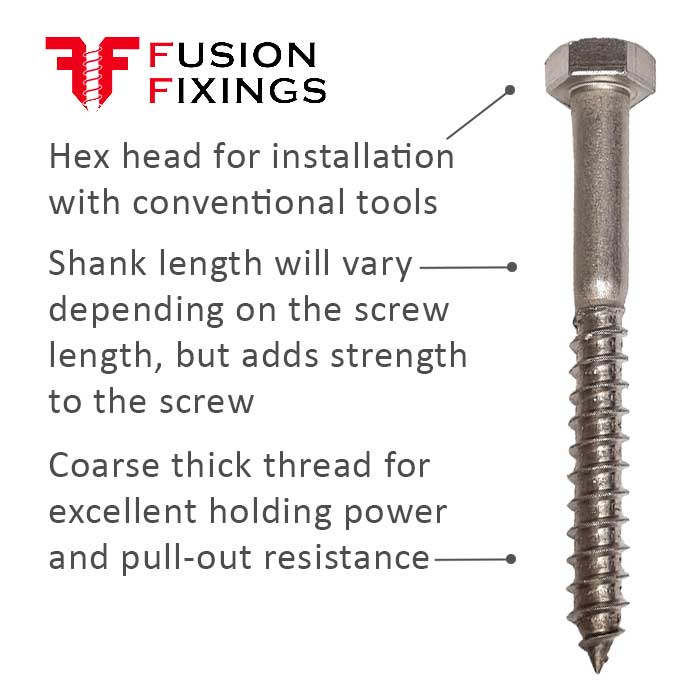

The thick thread of these stainless-steel coach screws ensures a strong hold when used within wood. Combined with a hexagonal head allows for a strong hold and easy fixing with an array of conventional tools.

The hex head also allows for additional torque to be applied which is why coach screws are used across many industries by both professionals and DIY enthusiasts alike.

Coach screw specification:

• Thread Diameter (TD): 6mm
• Length (L): 75mm
• Thread Length (TL): 45mm

• Head Width (H): 10mm
• Conformity: DIN 571 Standards
• Material: A2 Stainless Steel

A2 Stainless-steel coach screws offer exceptional hold and corrosion resistance. Part of a larger and growing range of coach screws from Fusion Fixing.

FAQs about stainless steel coach screws

What are hex head coach screws used for?

Hex head coach screws are heavy-duty screws designed for securing timber to timber, or timber to metal. The heavy-duty nature of the coach screw sees them commonly used in decking, fencing, roofing, and heavy joinery applications. The hexagonal head allows for higher torque using a spanner or socket for a firm, reliable hold.

How are coach screws different from coach bolts?

A coach screw had a pointed tip more like traditional screws and threads directly into wood without a nut. A coach bolt (also called a carriage bolt) has a flat tip, is used with a pre-drilled hole, and passes through the material being secured on the other side with a nut.

Can I use coach screws outside?

Yes, these stainless-steel coach screws can be used outside as they have a high resistance to corrosion. For harsher areas like saltwater environments, A4 stainless steel coach screws are advised as they offer the highest corrosion resistance.

Do I need to drill a pilot hole first?

Yes, with the heavy-duty nature of the coach screw, always pre-drill a pilot hole before installation.

Should I use a washer under the head?

It’s good practice to use a flat washer beneath the hex head as this spreads the load across a wider area and protects the timber surface.

Which material should I choose - BZP, A2, or A4 stainless steel?

The coach screws at Fusion Fixings are available in 3 material types which cover a larger range of applications.
•    BZP (Bright Zinc Plated): Ideal for indoor use or dry conditions.
•    A2 Stainless Steel: Great for outdoor projects such as fences or decking.
•    A4 Stainless Steel: Marine-grade corrosion resistance and the best choice for coastal or highly corrosive environments.

Can I use coach screws in brick, block, or concrete?

Coach screws are primarily for timber; however, they can be used in masonry for certain applications if combined with a suitable wall plug or anchor.
