M6 x 100mm Coach Screw A2 Stainless Steel DIN 571

Hex Head Stainless Steel Coach Screw

Heavy duty, A2 stainless steel M6 coach screw, manufactured in stainless steel for a good level of corrosion resistance making them ideal for both internal and external applications. Specifically designed for timber applications where a reliable and strong hold is needed every time.

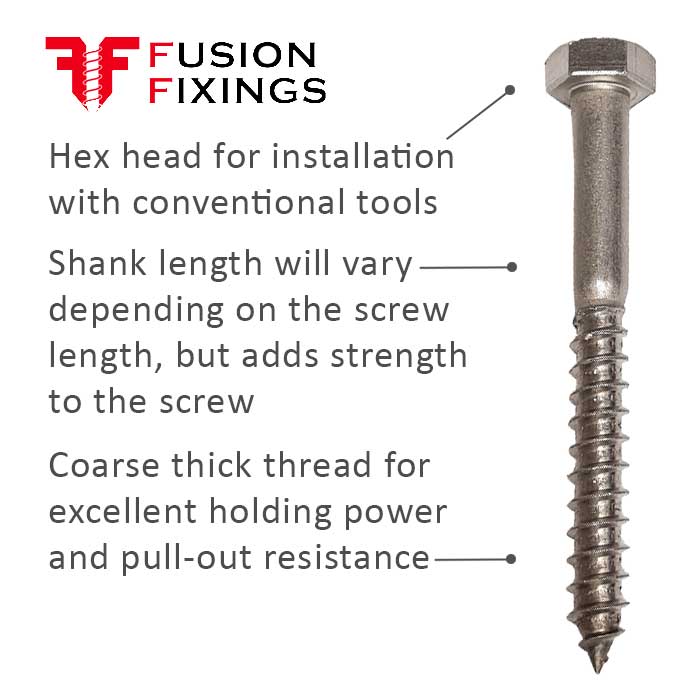

Manufactured with a thick cylindrical thread which allows for a strong hold and high pull out resistance when used within wood, while the hex head allows for installation with a range of conventional tools.

A great combination that sees the coach screw used across many sectors by professionals and DIY enthusiasts alike.

Coach screw specification:

• Thread Diameter (TD): M6 - 6mm
• Length (L): 100mm
• Thread Length (TL): 60mm

• Head Width (H): 10mm
• Conformity: DIN 571 Standards
• Material: A2 Stainless Steel

Used by the professionals and the DIY enthusiast, these stainless-steel coach screws offer exceptional hold and corrosion resistance.

Part of a larger and growing range of coach screws from Fusion Fixing.

FAQs about stainless steel coach screws

What are hex head coach screws used for?

Hex head coach screws are heavy-duty screws designed for securing timber to timber, or timber to metal. The heavy-duty nature of the coach screw sees them commonly used in decking, fencing, roofing, and heavy joinery applications. The hexagonal head allows for higher torque using a spanner or socket for a firm, reliable hold.

How are coach screws different from coach bolts?

A coach screw had a pointed tip more like traditional screws and threads directly into wood without a nut. A coach bolt (also called a carriage bolt) has a flat tip, is used with a pre-drilled hole, and passes through the material being secured on the other side with a nut.

Can I use coach screws outside?

Yes, these stainless-steel coach screws can be used outside as they have a high resistance to corrosion. For harsher areas like saltwater environments, A4 stainless steel coach screws are advised as they offer the highest corrosion resistance.

Do I need to drill a pilot hole first?

Yes, with the heavy-duty nature of the coach screw, always pre-drill a pilot hole before installation.

Should I use a washer under the head?

It’s good practice to use a flat washer beneath the hex head as this spreads the load across a wider area and protects the timber surface.

Which material should I choose — BZP, A2, or A4 stainless steel?

The coach screws at Fusion Fixings are available in 3 material types which cover a larger range of applications.
•    BZP (Bright Zinc Plated): Ideal for indoor use or dry conditions.
•    A2 Stainless Steel: Great for outdoor projects such as fences or decking.
•    A4 Stainless Steel: Marine-grade corrosion resistance and the best choice for coastal or highly corrosive environments.

Can I use coach screws in brick, block, or concrete?

Coach screws are primarily for timber; however, they can be used in masonry for certain applications if combined with a suitable wall plug or anchor.
