M6 x 16mm Type D Flanged Threaded Insert Nut (6mm key) Zinc Plated

M6 flanged threaded insert

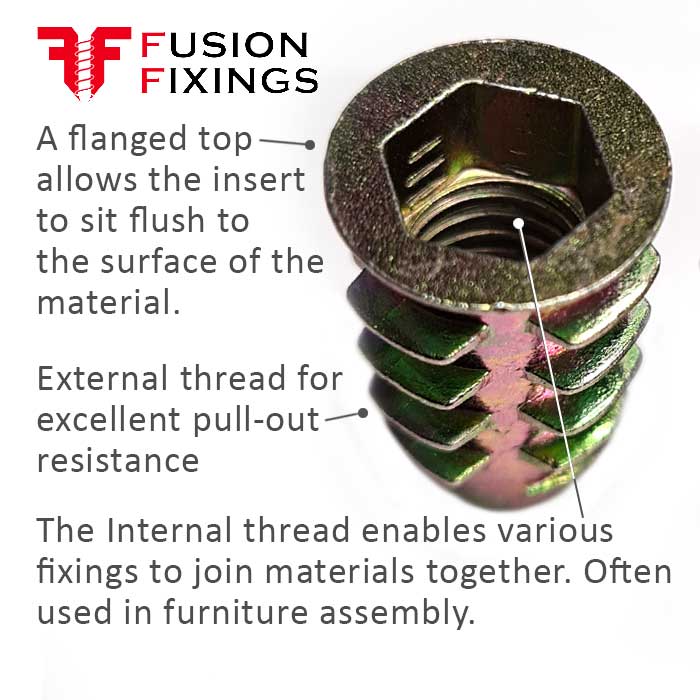

A flanged threaded insert specifically designed to allow a strong permanent threaded hole in wood.

The unique external thread ensures easy installation with a strong hold and high pull-out resistance, while the internal thread enables components to be fixed together

Type D insert nuts have a flanged head which prevents the insert being driven too deep into the material, allowing it to sit flush to the materials surface.

Installation is simple and a pre-drilled hole is advised. Often seen in furniture construction this versatile and simple to use insert nut is used across many industries by DIY enthusiasts and professionals alike.

(Please note: These threaded inserts are zinc plated and could be supplied with a zinc and yellow finish or a bright zinc finish)

M6 threaded insert specification:

• Size (D): M6 - 6mm
• Length (L): 16mm
• Head diameter (H): 12.5mm
• Diameter 1 (D1): 7.6mm
• Drive type (DT): Hex key 6mm
• Hole size: 8.7mm - 9.1mm
• Finish: Zinc Plated

This M6 insert nut is part of a growing range of flanged threaded inserts for wood available at competitive prices from Fusion Fixings.
