M4 x 10mm Type D Flanged Threaded Insert Nut (4mm key) Zinc Plated

M4 flanged threaded insert

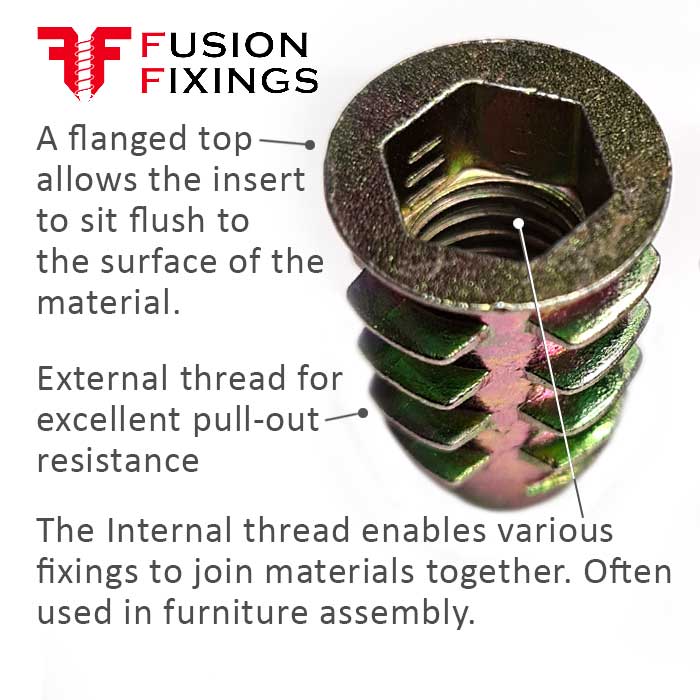

A flanged threaded insert specifically designed to allow a strong permanent threaded hole in wood.

The unique external thread ensures easy installation with a strong hold and high pull-out resistance, while the internal thread enables components to be fixed together.

Type D threaded inserts have a flanged head which prevents the insert being driven too deep into the material, allowing it to sit flush to the materials surface.

Installation is simple and a pre-drilled hole is advised. Often seen in furniture construction this versatile and simple to use insert nut is used across many industries by DIY enthusiasts and professionals alike.

(Please note: These threaded inserts are zinc plated and could be supplied with a zinc and yellow finish or a bright zinc finish)

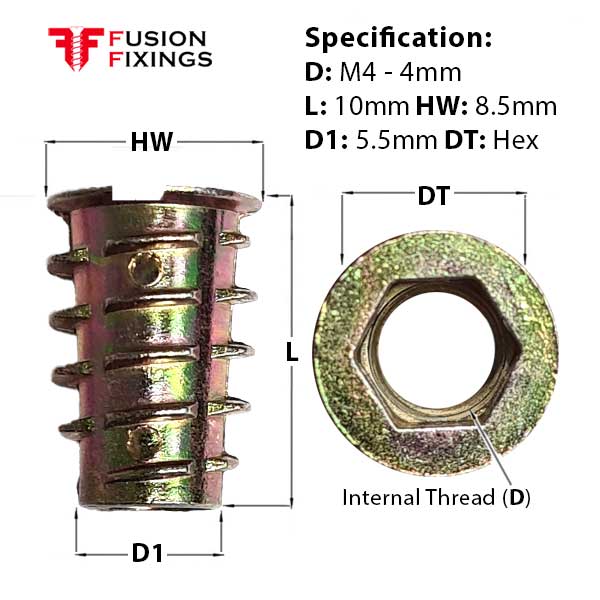

M5 threaded insert specification:

• Size (D): M4 - 4mm
• Length (L): 10mm
• Head diameter (H): 8.5mm
• Diameter 1 (D1): 5.5mm
• Drive type (DT): Hex key 4mm
• Hole size: 5.6mm - 6mm
• Finish: Zinc Plated

This M4 insert nut is part of a growing range of threaded inserts for wood available at competitive prices from Fusion Fixings.
