M5 x 80mm Coach Screw A2 Stainless Steel DIN 571
M5 x 80mm Stainless steel coach screw

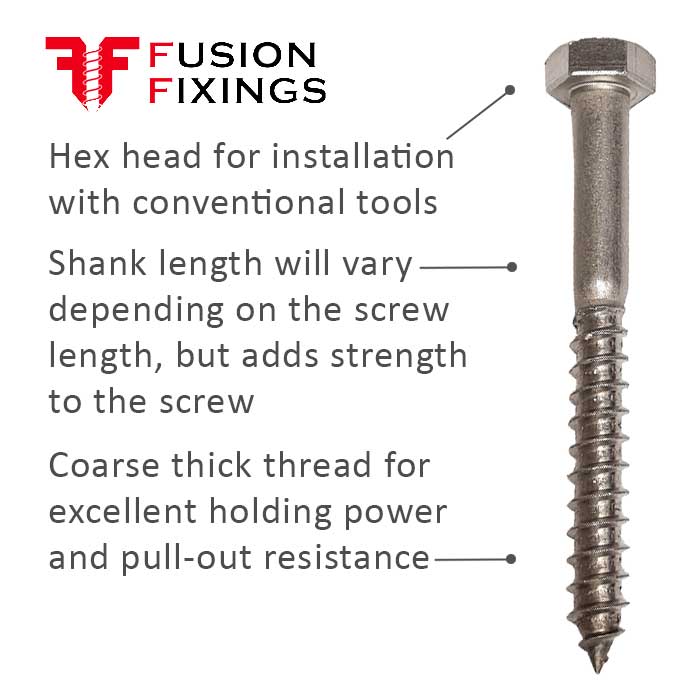

Corrosion resistant with a thick cylindrical thread and hex head for a firm hold when used with wood. With great pull our resistance and a hex head for use with a range of conventional tools.
Primarily used with wood and for larger timber projects, the hex head also allows additional torque to be applied when installing.
A quality stainless steel coach screw manufactured from A2 stainless steel offering a good level of corrosion resistance. The M5 x 80mm coach screw is a popular choice with professionals and DIY enthusiasts alike and utilised in many situations.

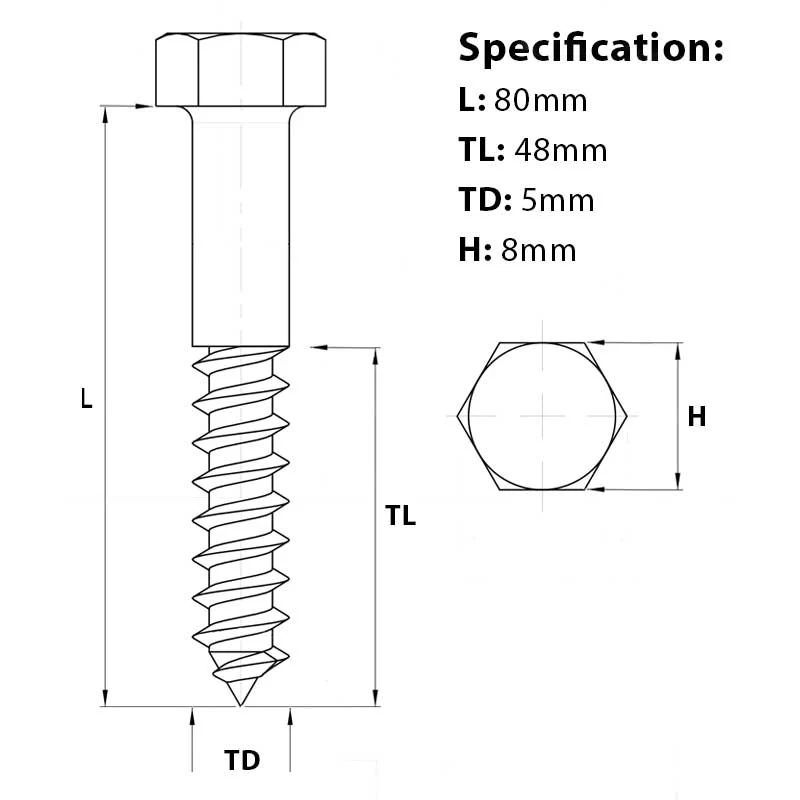

Coach screw specification:
- Thread Diameter (TD): M5 - 5mm
- Length (L): 80mm
- Thread Length (TL): 48mm
- Head Width (H): 8mm
- Conformity: DIN 571 Standards
- Material: A2 Stainless Steel
Part of a wider range of stainless-steel coach screws available from Fusion Fixings at great prices.
FAQs about stainless steel coach screws
What are hex head coach screws used for?
Hex head coach screws are heavy-duty screws designed for securing timber to timber, or timber to metal. The heavy-duty nature of the coach screw sees them commonly used in decking, fencing, roofing, and heavy joinery applications. The hexagonal head allows for higher torque using a spanner or socket for a firm, reliable hold.
How are coach screws different from coach bolts?
A coach screw had a pointed tip more like traditional screws and threads directly into wood without a nut. A coach bolt (also called a carriage bolt) has a flat tip, is used with a pre-drilled hole, and passes through the material being secured on the other side with a nut.
Can I use coach screws outside
Yes, these stainless-steel coach screws can be used outside as they have a high resistance to corrosion. For harsher areas like saltwater environments, A4 stainless steel coach screws are advised as they offer the highest corrosion resistance.
Do I need to drill a pilot hole first?
Yes, with the heavy-duty nature of the coach screw, always pre-drill a pilot hole before installation.
Should I use a washer under the head?
It’s good practice to use a flat washer beneath the hex head as this spreads the load across a wider area and protects the timber surface.
Which material should I choose — BZP, A2, or A4 stainless steel?
The coach screws at Fusion Fixings are available in 3 material types which cover a larger range of applications.
• BZP (Bright Zinc Plated): Ideal for indoor use or dry conditions.
• A2 Stainless Steel: Great for outdoor projects such as fences or decking.
• A4 Stainless Steel: Marine-grade corrosion resistance and the best choice for coastal or highly corrosive environments.
Can I use coach screws in brick, block, or concrete?
Coach screws are primarily for timber; however, they can be used in masonry for certain applications if combined with a suitable wall plug or anchor.
