4.2mm (No.8) x 80mm, Countersunk Self Drilling Screw (TEK), BZP, DIN 7504

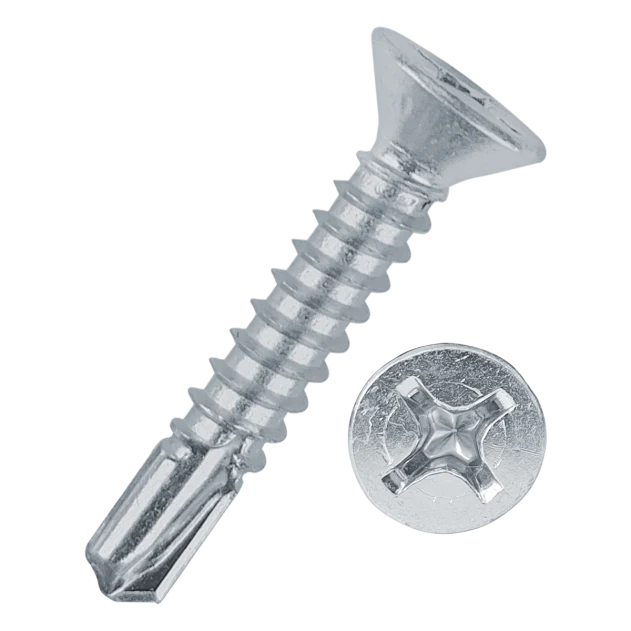

80mm countersunk self-drilling screw

Increase speed and efficiency with countersunk self-drilling screws. A drill-like tip allows the screw to create its own pilot hole. Combined with a self-tapping thread allows improved holding power and a tighter grip compared to traditional screws.

Known as TEK screws they are manufactured with a Phillips countersunk head for installation with a

range of standard tools. The countersunk head also allows for a flush finish to the surface of the material.

Manufactured from steel with a bright zinc plating (BZP) for a medium level of corrosion and conforms to DIN 7504 standards.

An impressive combination that makes for a versatile screw when ease of installation, speed, and reliability are needed.

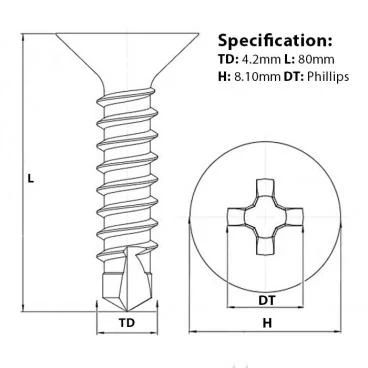

80mm self-drilling screw specification

• Thread Diameter (TD): 4.2mm
• Length (L): 80mm
• Head Width (H): 8.10mm
• Drive Type (DT): Phillips
• Material: Steel
• Finish: Bright zinc plated (BZP)
• Conforms: DIN 7504

Part of a growing range of self-drilling screws held in stock with various lengths available.

Note - Drill point wander is a possibility with the self-drilling screws, but this can be eliminated by using a very quick centre punch indent.
