6.3mm (No.14) x 50mm, Countersunk Self Drilling Screw (TEK), BZP, DIN 7504

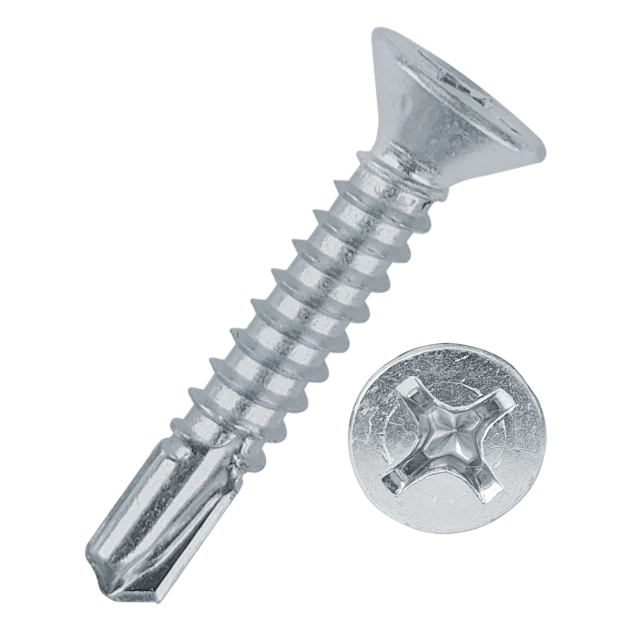

50mm countersunk self drilling screw

Reliable countersunk self drilling screws with a drill-like tip allowing the screw to create its own pilot hole. Combined with a self-tapping thread allows improved holding power and a countersunk head for a flush finish.

Known as TEK screws they are manufactured with a Phillips countersunk head for installation with a range of standard tools.

Manufactured from steel with a bright zinc plating (BZP) for a medium level of corrosion and conforms to DIN 7504 standards.

A great combination that makes for a versatile screw when ease of installation, speed, and reliability are needed.

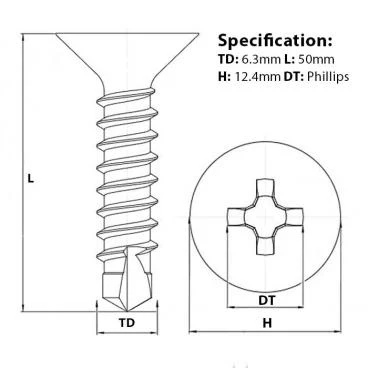

45mm self drilling screw specification

• Thread Diameter (TD): 6.3mm
• Length (L): 50mm
• Head Width (H): 12.4mm
• Drive type (DT): Phillips
• Material: Steel
• Finish: Bright zinc plated (BZP)
• Conforms: DIN 7504

Part of a growing range of self-drilling screws with a countersunk head held in stock with various lengths available.

Note - Drill point wander is a possibility with the self-drilling screws, but this can be eliminated by using a very quick centre punch indent.
