8mm (M5) x 80mm, Extractable Dowel Pin, Hard & Ground, Self-Colour, DIN 7979D

Extractable Metal Dowel Pin x 80mm

Extractable metal dowel pin, with an M5 internal thread, ideal for accurate positioning and locating of parts every time. Primarily used in mould making, jigs, fixtures, and machinery.

An M5 (8mm) x 80mm extractable metal dowel pin with an internal thread which can be used to extract the pin after installation if needed. The dowels also have a slight flat edge to ensure air can escape when installed.

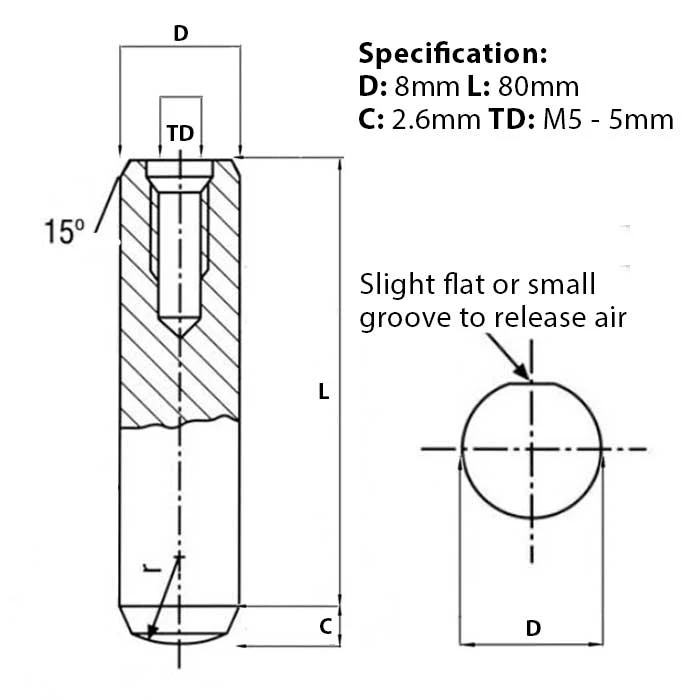

8mm Dowel Pin Specifications:

• Diameter (D): 8mm
• Thread Diameter (TD): M5 – 5mm
• Length (L): 80mm (C): 2.6mm
• Material: Hard & Ground Steel
• Conformity: DIN 7979D

Manufactured to DIN 7979D standards and part of a growing range of extractable metal dowel pins held in stock with bulk price discounts
