M8 (10mm) x 60mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379

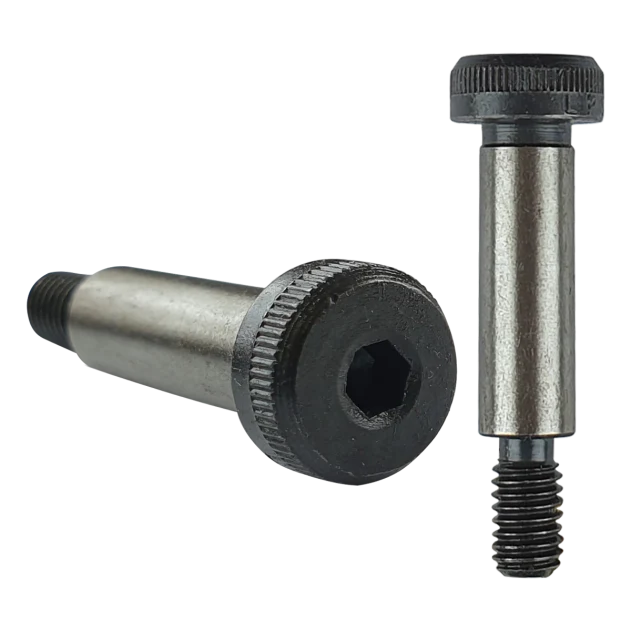

M8 Socket Shoulder Machine Screw

High-strength engineering screw manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.

Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

Manufactured from self-colour, grade 12.9 high tensile steel, a versatile machine screw with a shoulder section allowing it to function as a dowel, pivot, or axle, allowing movement to occur around it.

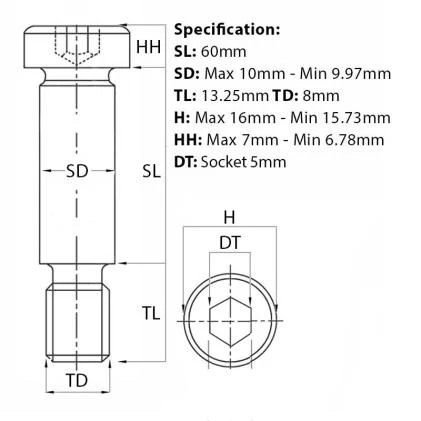

M8 Shoulder Screw Specification:

• Shoulder Length (SL): 60mm
• Shoulder Diameter (SD): Max 10mm – Min 9.978mm
• Thread Length (TL): 13.25mm
• Thread Diameter (TD): 8mm
• Thread Pitch: 1.25mm
• Head Width (H): Max 16mm – Min 15.73mm
• Head Height (HH): Max 7mm – Min 6.78mm
• Drive Type (DT): Socket 5mm
• Material: Self-Colour, Grade 12.9 steel
• Conformity: ISO 7379 standards

Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.
