M6 x 130mm Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel DIN 933

M6 hex set screw

M6 hex set screw manufactured in A2 stainless steel with high corrosion resistance making it ideal for internal and external uses.

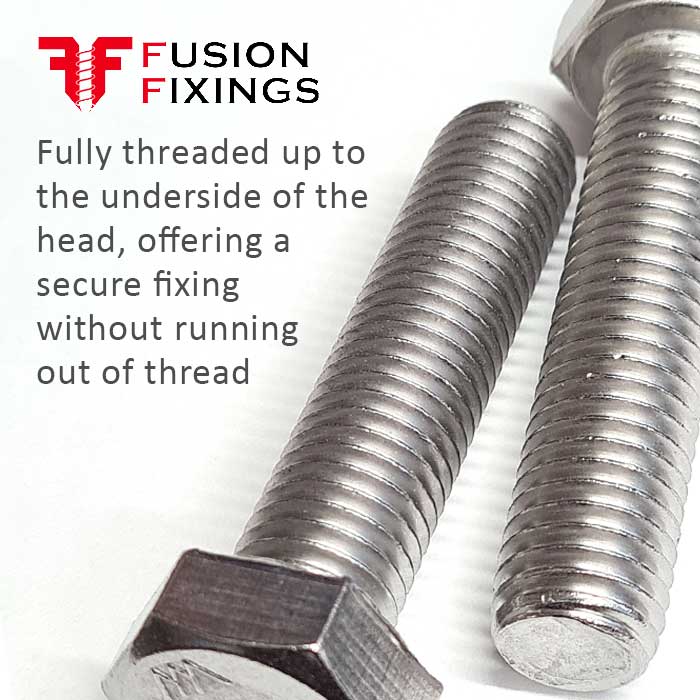

Unlike hexagon bolts, which are partially threaded, the hex set screw has a thread extending up to the underside of the head. This fully threaded shank also sees them known as fully threaded bolts in the trade.

The fully threaded shank makes these screws popular as it ensures they can be used in many situations without the worry of running out of thread.

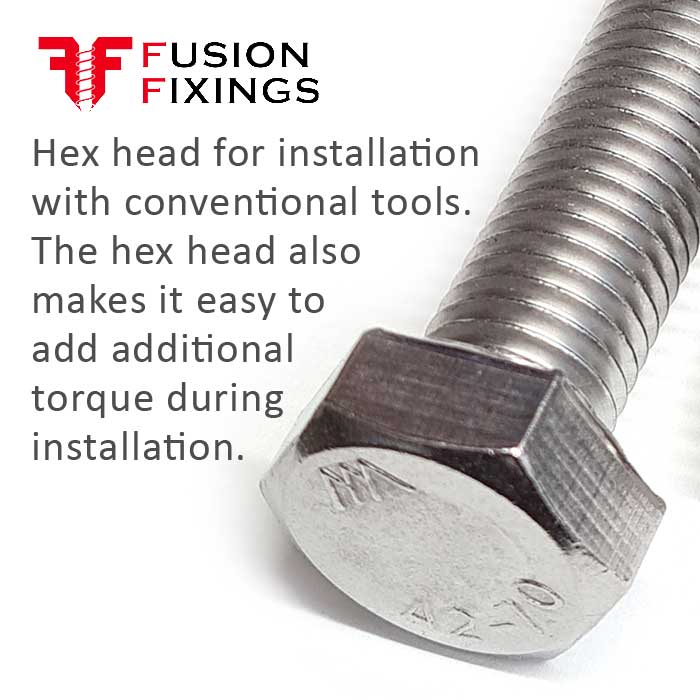

The hexagonal head also allows for higher torque to be applied with a range of conventional tools which makes them a popular choice.

Engineered for durability and strength and when combined with M6 stainless steel nuts and M6 washers, sees these stainless steel set screws widely used across many industries by DIY enthusiasts and professionals alike.

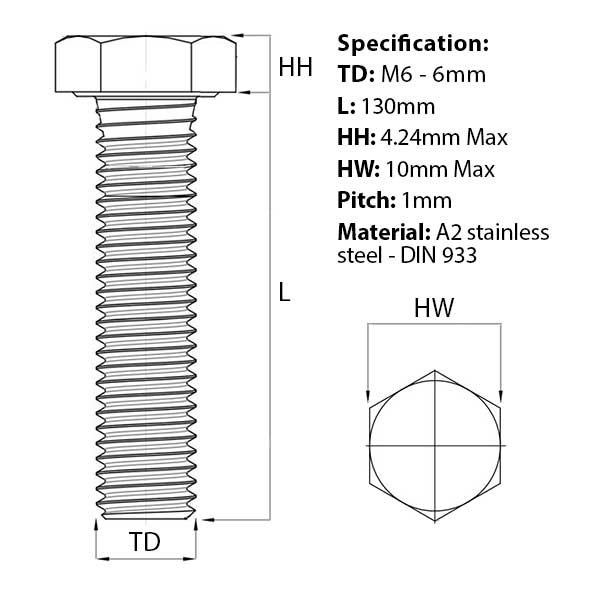

M6 hex head set screw specification

• Thread diameter (TD): M6 - 6mm
• Length (L): 130mm
• Head height (HH): 4.24mm Max
• Head width (HW): 10mm Max
• Thread Pitch: 1 mm
• Material: A2 stainless steel
• Conformity: DIN 933

Versatile and widely used, the comprehensive range of hex head set screws available from Fusion Fixings is growing.

Quantities from just one to as many as you require, with bulk discounts across the range.
