M6 (8mm) x 30mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379

Product image 1
Product image 2

M6 (8mm) x 30mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379

M6 (8mm) x 30mm Socket Cap Shoulder Screw

High-strength engineering screw manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.

Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

Manufactured from self-colour, grade 12.9 high tensile steel, the shoulder section can function as a dowel, pivot, or axle, allowing movement to occur around it.

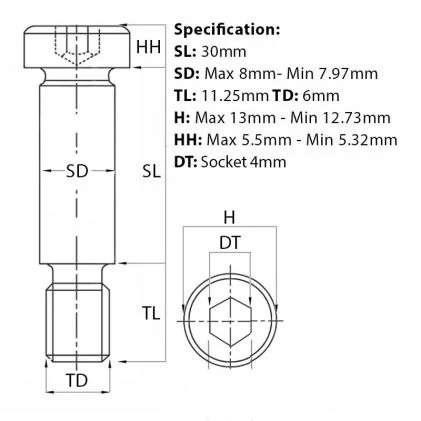

M6 Shoulder Screw Specification:

  • Shoulder Length (SL): 30mm
  • Shoulder Diameter (SD): 8mm - Min 7.978mm
  • Thread Length (TL): 11.25mm
  • Thread Diameter (TD): 6mm
  • Thread Pitch: 1mm
  • Head Width (H): Max 13mm - Min 12.73mm
  • Head Height: (HH): Max 5.5mm - Min 5.32mm
  • Drive Type (DT): Socket 4mm
  • Material: Self-Colour, Grade 12.9 steel
  • Conformity: ISO 7379 standards

Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and are part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.

    Select Quantity Break
    From $0.14

    Original: $0.47

    -70%
    M6 (8mm) x 30mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379—

    $0.47

    $0.14

    Product Information

    Shipping & Returns

    Description

    M6 (8mm) x 30mm Socket Cap Shoulder Screw

    High-strength engineering screw manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.

    Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

    Manufactured from self-colour, grade 12.9 high tensile steel, the shoulder section can function as a dowel, pivot, or axle, allowing movement to occur around it.

    M6 Shoulder Screw Specification:

    • Shoulder Length (SL): 30mm
    • Shoulder Diameter (SD): 8mm - Min 7.978mm
    • Thread Length (TL): 11.25mm
    • Thread Diameter (TD): 6mm
    • Thread Pitch: 1mm
    • Head Width (H): Max 13mm - Min 12.73mm
    • Head Height: (HH): Max 5.5mm - Min 5.32mm
    • Drive Type (DT): Socket 4mm
    • Material: Self-Colour, Grade 12.9 steel
    • Conformity: ISO 7379 standards

    Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and are part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.
