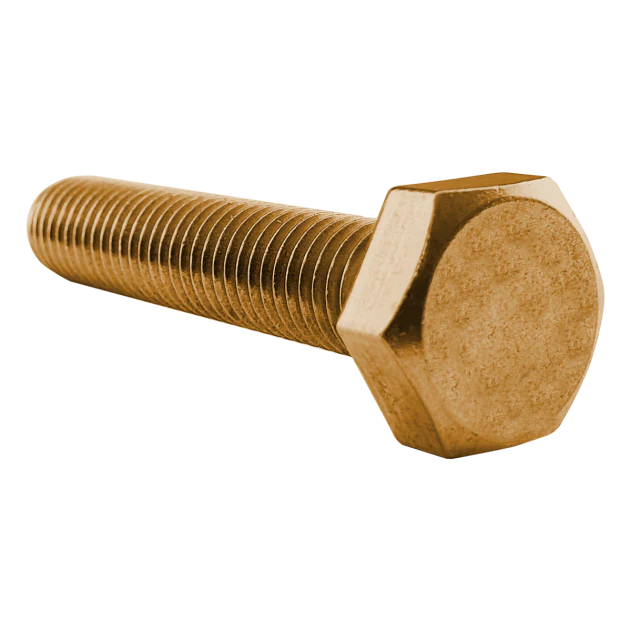

M5 x 30mm Brass Hex Set Screw (Fully Threaded Bolt) DIN 933

M5 hex set screw

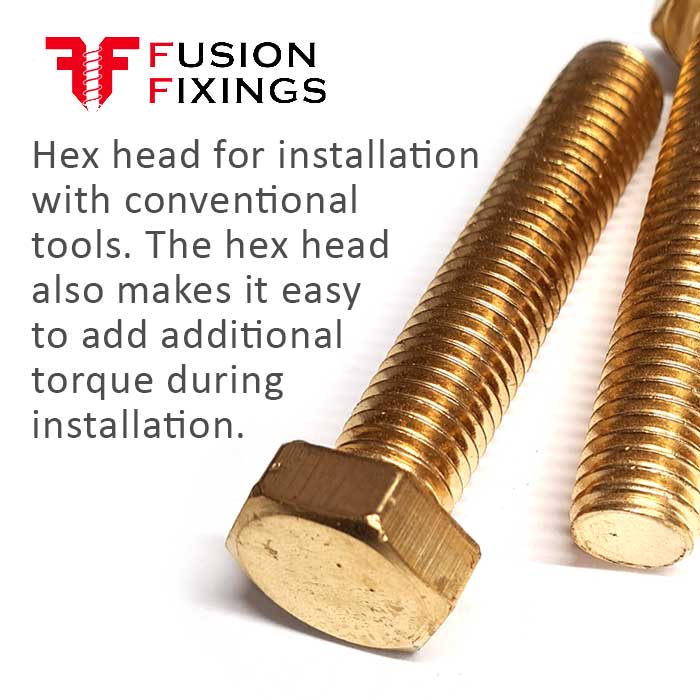

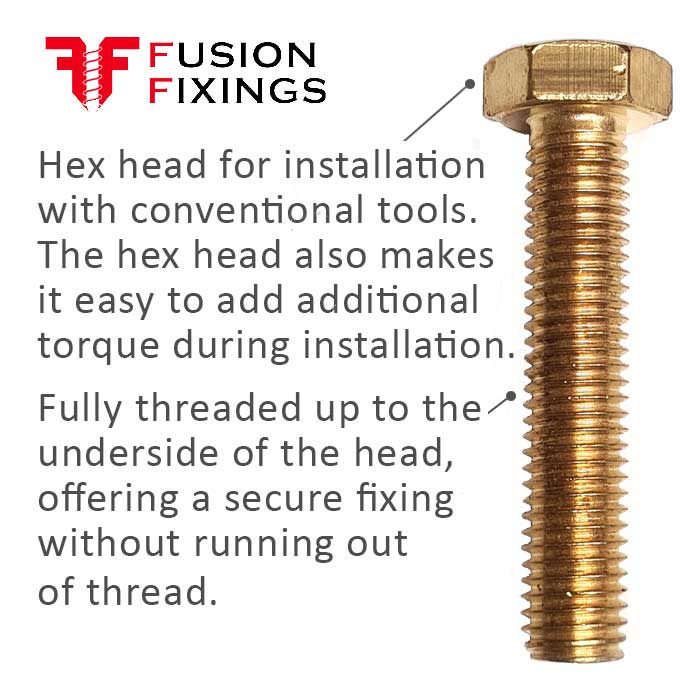

Manufactured in solid brass for excellent corrosion resistance making it ideal for internal and external uses. Manufactured with a hexagon head and thread that extends up to the underside of the head.

A combination that allows higher torque to be applied with a range of conventional tools while the full thread allows the set screws to be used in many situations without the worry of running out of thread.

The fully threaded shank also sees them known as fully threaded bolts in the trade and are often used when a more decorative finish is needed.

Versatile and when combined with M5 brass nuts and M5 brass washers, sees these fully threaded hex screws widely used across various industries by both DIY enthusiasts and professionals alike.

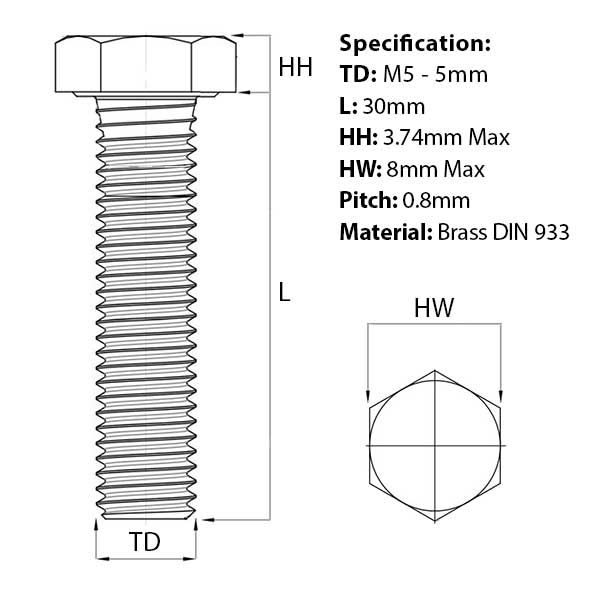

M5 brass set screw specification

• Thread diameter (TD): M5 - 5mm
• Length (L): 30mm
• Head height (HH): 3.74mm Max
• Head width (HW): 8mm Max
• Thread Pitch: 0.80mm
• Material: Solid brass
• Conformity: DIN 933

Quantities from just one to as many as you require, with bulk discounts across the range. See the growing range of brass hex set screws from Fusion Fixings.
