M5 x 10mm Flanged Socket Button Head Screw, Self-Colour, Grade 10.9

Flanged, Self-Colour, Button Head Socket Screw, M5 x 10mm

10mm flanged socket button head screw specifically designed with a low rounded head ideal for use where safety and an aesthetic finish is required.

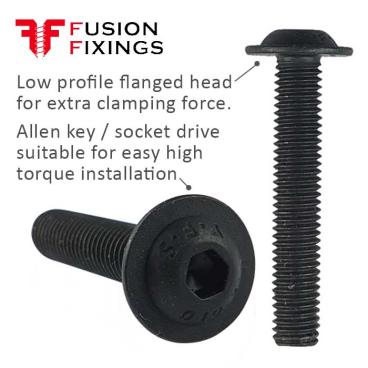

Combined with an Allen key / socket drive suitable for easy high torque installation. The flanged head eliminates the need for a separate washer, protects the materials surface, covers odd sized holes, and allows for a stronger grip when tightened.

Manufactured from a high tensile grade 10.9 steel with a black self-colour finish. Widely used by professionals and DIY enthusiasts across many sectors.

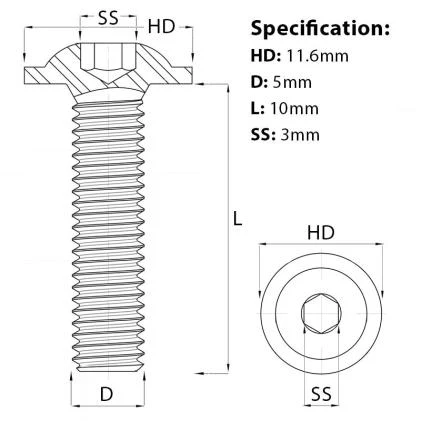

M5 Flanged Socket Button Head Screw Specification:

• Head Diameter (HD): 11.6mm
• Diameter (D): 5mm
• Length (L): 10mm
• Socket Size (SS): 3mm
• Material: Black Self-colour Steel, Grade 10.9, ISO 7380-2

Part of a larger range available at Fusion Fixings.
