M5 x 10mm Flanged Socket Button Head Screw, BZP, Grade 10.9

BZP, Flanged, Button Head Socket Screw M5 x 10mm

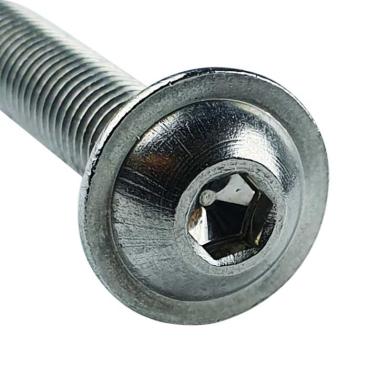

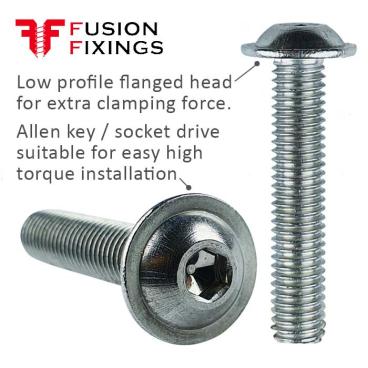

M5 x 10mm button head socket screw with a flanged head. Specifically designed with a low rounded head ideal for use where safety and an aesthetic finish is required.

Combined with an Allen key / socket drive suitable for easy high torque installation. The flanged head eliminates the need for a separate washer, protects the materials surface, covers odd sized holes, and allows for a stronger grip when tightened.

Grade 10.9 steel with a bright zinc plating gives this button head socket screw a mid-level corrosion resistance and is widely used by professionals and DIY enthusiasts across many sectors.

M5 Flanged Button Head Socket Screw Specification:

• Head Diameter (HD): 11.6mm
• Diameter (D): 5mm
• Length (L): 10mm
• Socket Size (SS): 3mm
• Material: Bright Zinc Plated Steel, Grade 10.9, ISO 7380-2

This bright zinc plated M5 flanged button head socket screw is part of a larger range available at Fusion Fixings with bulk price discounts.
