M5 Wave Washer, A1 Stainless Steel DIN 137b

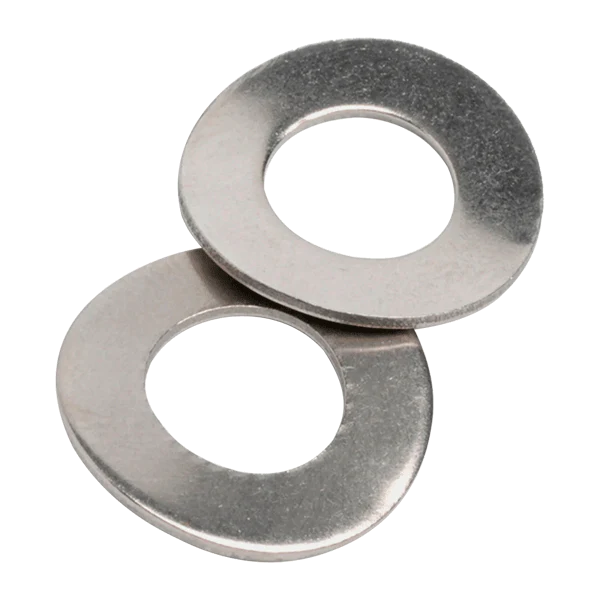

M5 Wave Washer

M5 wave washers designed with a curved shape which produces a level of spring pressure when compressed during installation. This helps to prevent loosening of bolted joints under vibration and often used to pre-load fasteners.

Wave Washers can be known as Crinkle Washers in the trade, but Crinkle Washers are generally used for spacing with a multi wave design and multiple points of contact. Wave Washer are designed as more of a spring component with a single curved appearance.

Designed to help prevent loosening of bolted joints under vibration and used across many industries for various applications by both DIY enthusiasts and professionals alike.

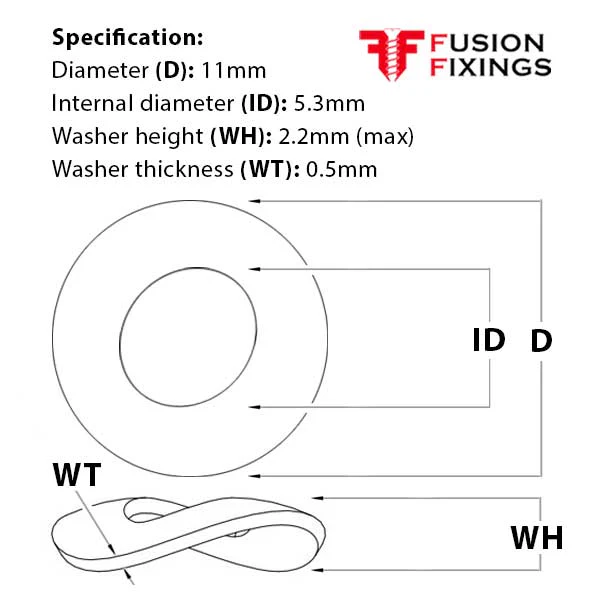

M5 wave washer specifications

• Diameter (D): 11mm
• Internal diameter (ID): 5.3mm
• Washer height (WH): 2.2mm (max)
• Washer thickness (WT): 0.5mm
• Material: A1 stainless steel
• Conformity: DIN 137b


Part of a growing range of washers at competitive prices with bulk price discounts at Fusion Fixings.
