M5 (6mm) x 6mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379
M5 (6mm) x 6mm Socket Shoulder Screw
High-strength engineering fastener manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.
Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section. The shoulder can function as a dowel, pivot, or axle, allowing movement to occur around it.
Manufactured from grade 12.9 high tensile steel, the shoulder sections on these screws are available in a variety of lengths for use in a large range of applications.

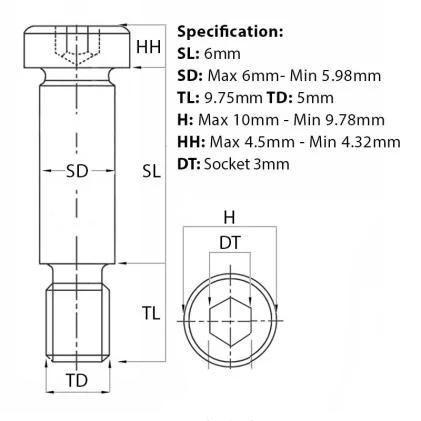

M5 Shoulder Screw Specification:
- Shoulder Length (SL): 6mm
- Shoulder Diameter (SD): Max 6mm - Min 5.98mm
- Thread Length (TL): 9.75mm
- Thread Diameter (TD): 5mm
- Thread Pitch: 0.80mm
- Head Width (H): Max 10mm - Min 9.78mm
- Head Height: (HH): Max 4.5mm - Min 4.32mm
- Drive Type (DT): Socket 3mm
- Material: Self-Colour, Grade 12.9 steel
- Conformity: ISO 7379 standards
These Socket shoulder screws are extremely versatile and useful in a wide range of industries and applications.
Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and are part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.
Original: $0.43
-70%$0.43
$0.13Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
M5 (6mm) x 6mm Socket Shoulder Screw
High-strength engineering fastener manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.
Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section. The shoulder can function as a dowel, pivot, or axle, allowing movement to occur around it.
Manufactured from grade 12.9 high tensile steel, the shoulder sections on these screws are available in a variety of lengths for use in a large range of applications.
M5 Shoulder Screw Specification:
- Shoulder Length (SL): 6mm
- Shoulder Diameter (SD): Max 6mm - Min 5.98mm
- Thread Length (TL): 9.75mm
- Thread Diameter (TD): 5mm
- Thread Pitch: 0.80mm
- Head Width (H): Max 10mm - Min 9.78mm
- Head Height: (HH): Max 4.5mm - Min 4.32mm
- Drive Type (DT): Socket 3mm
- Material: Self-Colour, Grade 12.9 steel
- Conformity: ISO 7379 standards
These Socket shoulder screws are extremely versatile and useful in a wide range of industries and applications.
Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and are part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.
