M5 (6mm) x 60mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379

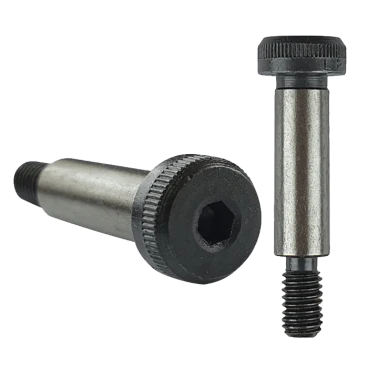

M5 Socket Cap Shoulder Screw

High-strength engineering fastener manufactured to ensure thread and shaft consistency. Designed for heavy duty applications with a hex socket allowing fastening with a Hexagonal/Allen key.

Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

Manufactured from self-colour, grade 12.9 high tensile steel, a versatile machine screw with a shoulder section allowing it to function as a dowel, pivot, or axle, allowing movement to occur around it.

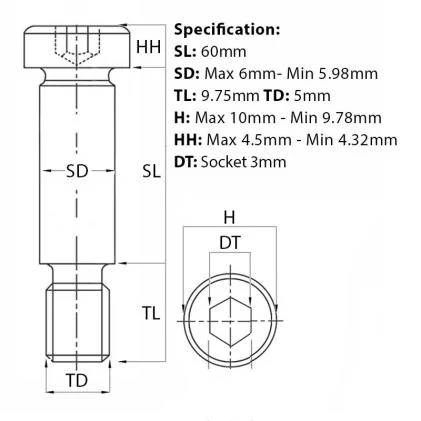

M5 Shoulder Screw Specification:

• Shoulder Length (SL): 60mm
• Shoulder Diameter (SD): Max 6mm - Min 5.982mm
• Thread Length (TL): 9.75mm
• Thread Diameter (TD): 5mm
• Thread Pitch: 0.80mm
• Head Width (H): Max 10mm - Min 9.78mm
• Head Height: (HH): Max 4.5mm - Min 4.32mm
• Drive Type (DT): Socket 3mm
• Material: Self-Colour, Grade 12.9 steel
• Conformity: ISO 7379 standards

These Socket shoulder screws are extremely versatile and useful in a wide range of industries and applications.

Conforming to ISO 7379 standards and are part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.
