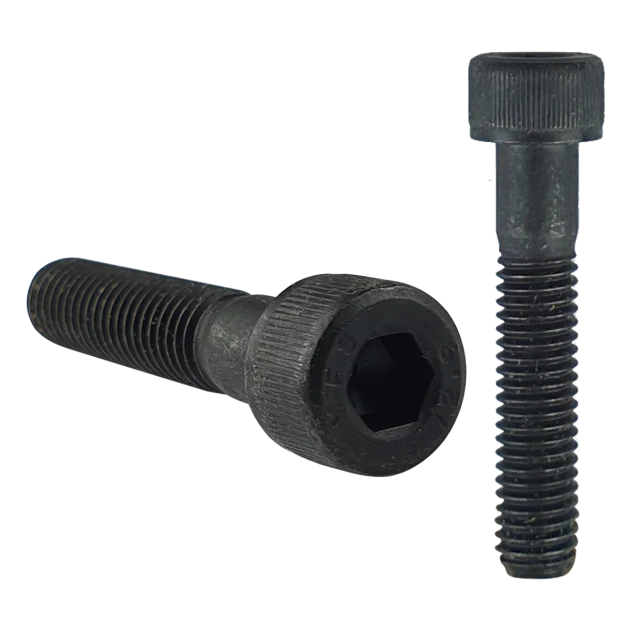

M27 x 180mm Socket Cap Head Screw, Self Colour, Grade 12.9 high tensile steel, DIN 912

M27 cap head screw

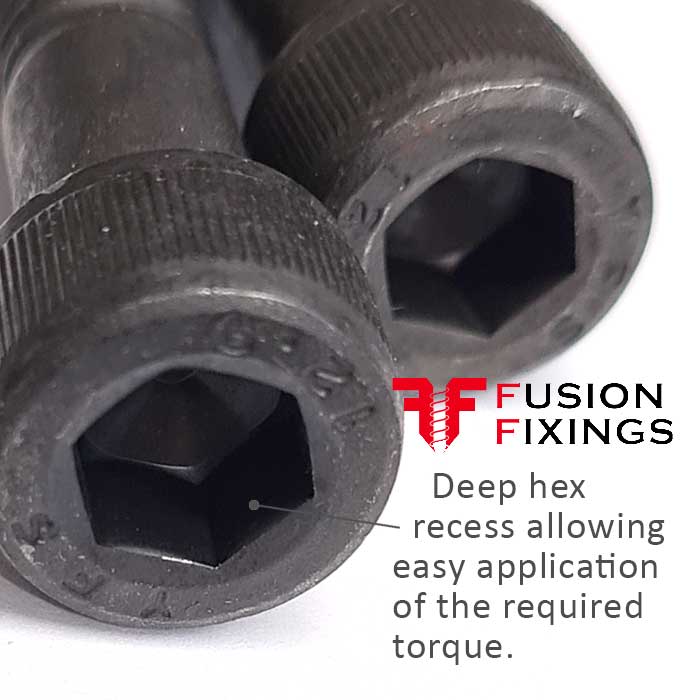

Socket cap head screw with a deep internal socket recess that allows easy installation and the application of the required torque for a secure hold.

A self-colour machine screw with a distinctive cylindrical head that’s designed to achieve high torque and manufactured from grade 12.9 high tensile steel for strength.

Installed with an Allen wrench or hex key sees them widely used, including situations where space is tight and where a secure hold is needed every time.

Often referred to as cap head bolts in the trade but also known as an Allen key bolt or socket screw.

Available in many sizes and lengths, these cap head screws are used by DIY enthusiasts and professionals across many diverse sectors. These include automotive, aerospace, machinery, and construction.

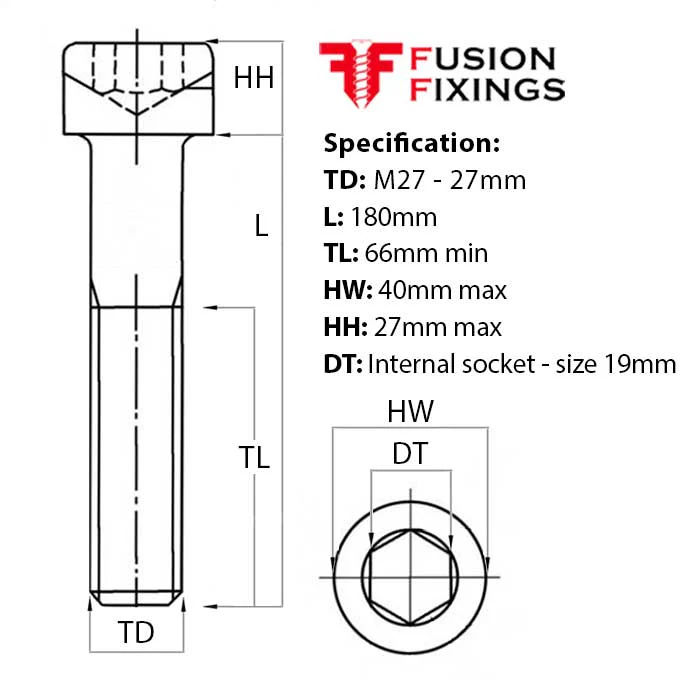

M27 socket head cap screw specification:

• Diameter (TD): M27 - 27mm

• Length (L): 180mm
• Thread length (TL): 66mm min
• Head width (HW): 40mm max

• Head height (HH): 27mm max

• Head type: Cap head

• Recess type (DT): Internal hex drive (Size 19mm)

• Pitch: 3mm

• Material: Grade 12.9 high tensile steel

• Finish: Self-colour
• Conformity: DIN 912

Used by DIY enthusiasts and professional alike and part of an extensive range of cap head screws available from Fusion Fixings with bulk discounts.

Looking for a cap head screw with corrosion resistance?

If you need a socket cap head screw with a high level of corrosion resistance, take a look at our A2 stainless steel cap head screws.

For the highest level of corrosion resistance, Fusion Fixings supply A4 stainless steel cap head screws.
