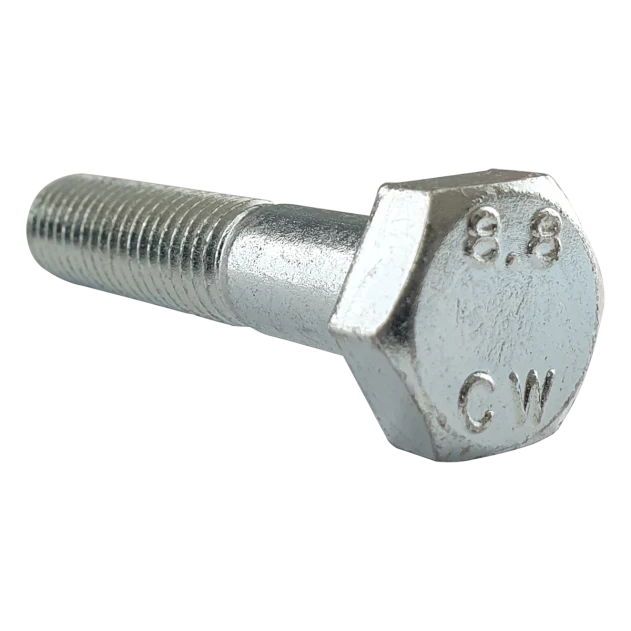

M24 x 230mm Hex Bolt (Part Threaded Bolt) BZP, DIN 931 Grade 8.8

M24 Hex Bolt

M24 x 230mm hex bolt designed for heavy-duty fastening with a hexagon head that allows higher torque to be applied with a range of conventional tools making them a versatile choice.

Manufactured in steel with a bright zinc plating (BZP), the unthreaded shank below the hex head adds overall strength making this hex head bolt more resistant to vibration and shear forces when installed into the correctly drilled hole.

Engineered for durability, strength, and ease of use, these BZP bolts are widely used across many industries by DIY enthusiasts and professional alike.

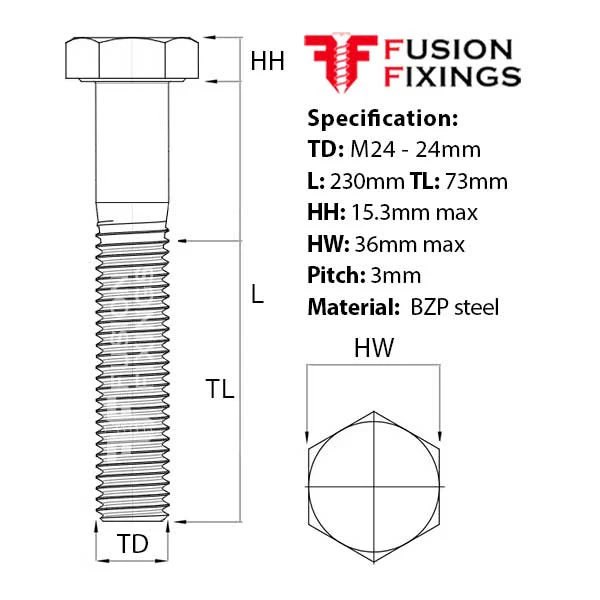

M24 hex bolt specification

• Thread diameter (TD): M24 - 24mm

• Length (L): 230mm

• Thread length (TL): 73mm

• Head width (HW): 36mm max (socket size)

• Head height (HH): 15.3mm max

• Thread pitch: 3mm

• Material: Bright zinc plated steel, grade 8.8

Versatile and widely used, this M24 hex bolt is part of an extensive range of hex head bolts held in stock at competitive prices. Quantities start from just one to as many as you require.

Do you need a hex bolt with better CORROSION RESISTANCE?

If you require a hex bolt with increased corrosion resistance for prolonged external use, take a look at our stainless steel M24 x 230mm hex bolt manufactured in A2 stainless steel, ideal for both internal and external applications.
