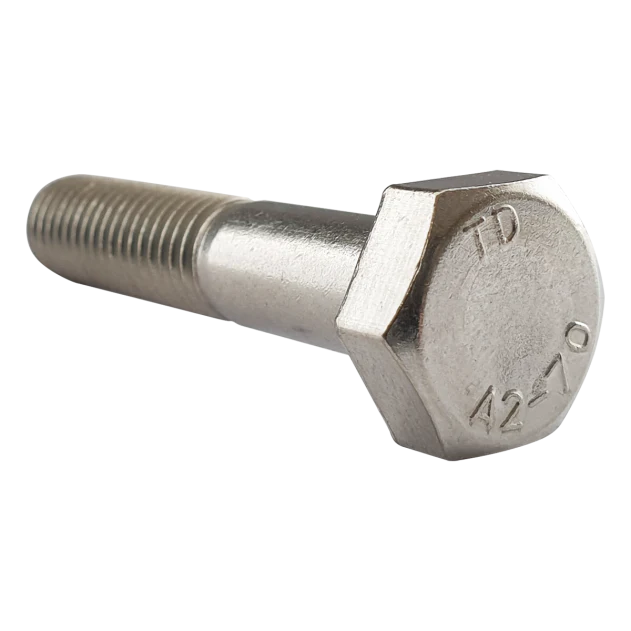

M22 x 140mm Hex Bolt (Part Threaded Bolt) A2 stainless steel, DIN 931

M22 Hex Bolt

M22 hex bolt in A2 stainless steel for high corrosion resistance, ideal for internal and external use.

Designed for heavy-duty fastening, the hexagon head allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

The unthreaded shank below the head adds overall strength making the hex head bolt more resistant to vibration and shear forces when installed into the correctly drilled hole.

A bolt engineered for durability and strength, these stainless steel hex bolts are widely used across many industries by DIY enthusiasts and professionals alike for numerous applications.

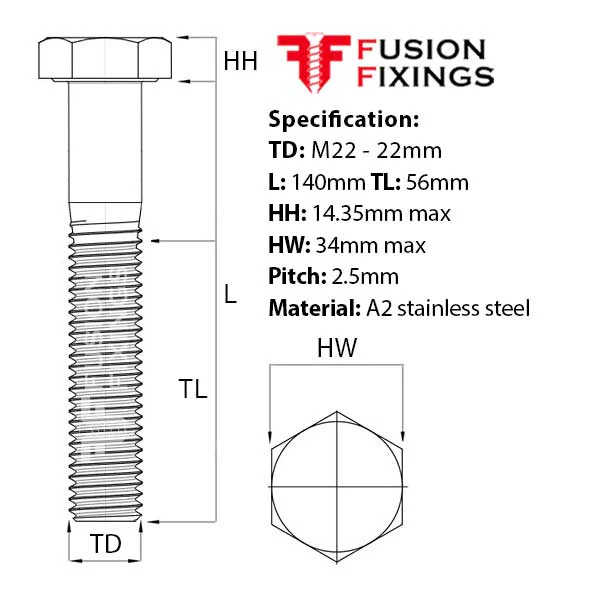

M22 hex bolt specification

• Thread diameter (TD): M22 - 22mm
• Length (L): 140mm
• Thread length (TL): 56mm min
• Head width (HW): 34mm max - socket size
• Head height (HH): 14.35mm max
• Thread pitch: 2.5mm
• Material: A2 stainless steel


Versatile and widely used, this M22 hex bolt is part of an extensive range of corrosion resistant hex bolts held in stock at competitive prices.

Quantities start from just one to as many as you require to get the job done.
