M16 x 50mm Brass Hex Set Screw (Fully Threaded Bolt) DIN 933

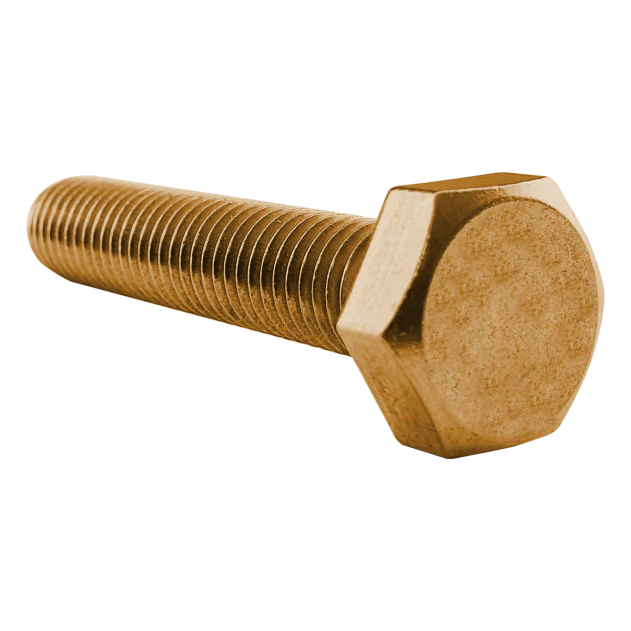

M16 brass hex set screw

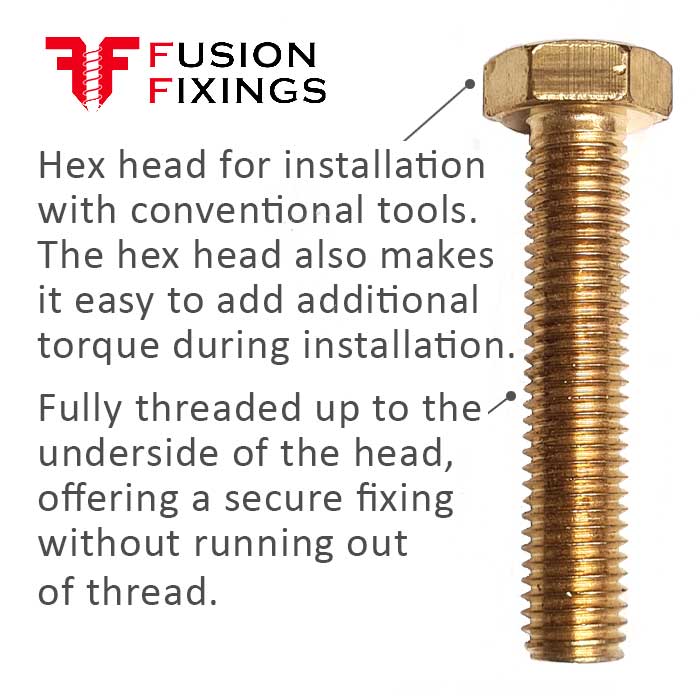

Hex set screw manufactured in solid brass for excellent corrosion resistance making it ideal for internal and external uses. A screw with a hexagon head and thread that extends up to the underside of the head.

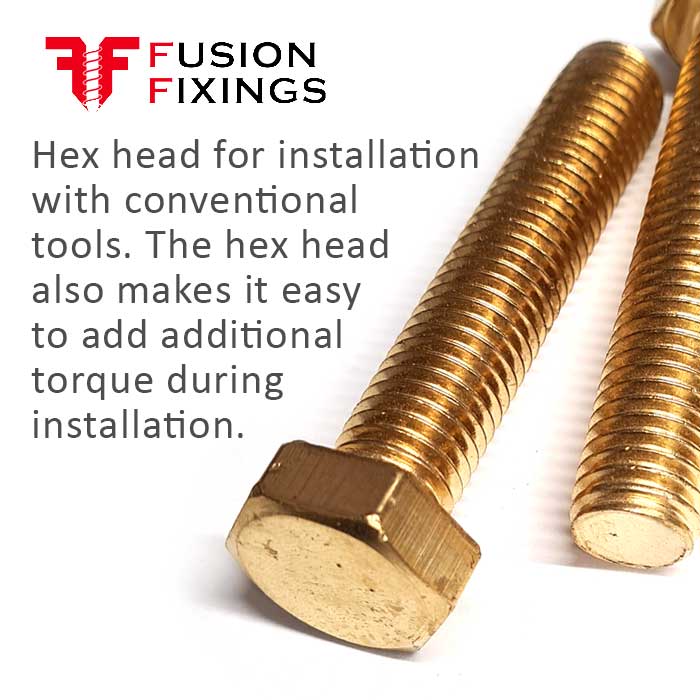

A combination that allows higher torque to be applied with a range of conventional tools while the full thread allows them to be used in many situations without the worry of running out of thread.

The fully threaded shank also sees them known as fully threaded bolts in the trade and are often used when a more decorative finish is needed.

Versatile and when combined with M16 brass nuts and M16 brass washers, sees these fully threaded hex screws widely used across various industries by both DIY enthusiasts and professionals alike.

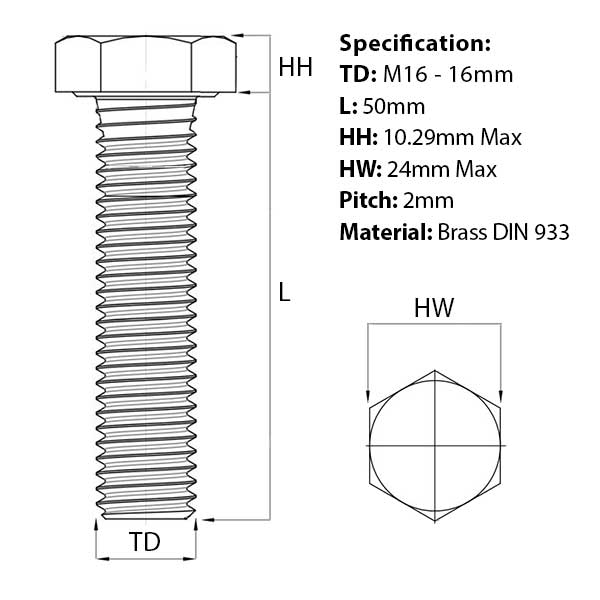

M16 brass set screw specification

• Thread diameter (TD): M16 - 16mm
• Length (L): 50mm
• Head height (HH): 10.29mm Max
• Head width (HW): 24mm Max
• Thread Pitch: 2mm
• Material: Solid brass
• Conformity: DIN 933

Quantities from just one to as many as you require, with bulk discounts across the range. See the growing range of solid brass hex set screws from Fusion Fixings.
