M16 (20mm) x 70mm, Socket Shoulder Screw, Self-Colour, Grade 12.9, ISO 7379

M16 Socket Shoulder Machine Screw

High-strength engineering screw ideal for heavy duty applications, with a hex socket allowing fastening with an Allen key / hex drive which sees them widely used.

Manufactured from self-colour, grade 12.9 high tensile steel. Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

A versatile machine screw with a shoulder section allowing it to function as a dowel, pivot, or axle, allowing movement to occur around it.

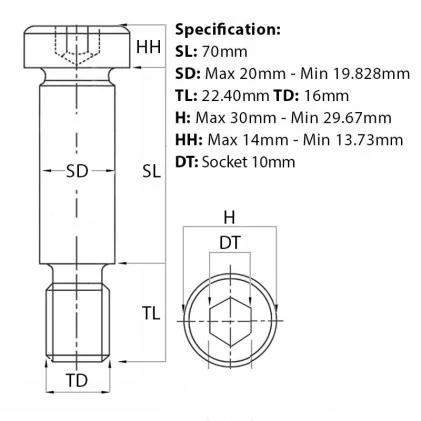

M16 Shoulder Screw Specification:

• Shoulder Length (SL): 70mm
• Shoulder Diameter (SD): Max 20mm - Min 19.828mm
• Thread Length (TL): 22.40mm
• Thread Diameter (TD): 16mm
• Thread Pitch: 2mm
• Head Width (H): Max 30mm - Min 29.67mm
• Head Height (HH): Max 14mm - Min 13.73mm
• Drive Type (DT): Socket 10mm
• Material: Self-Colour, Grade 12.9 steel
• Conformity: ISO 7379 standards

Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and part of an extensive range of shoulder screws available in stock at Fusion Fixings, all with bulk purchase discounts.
