M14 x 75mm Hex Bolt (Part Threaded Bolt) A2 stainless steel, DIN 931

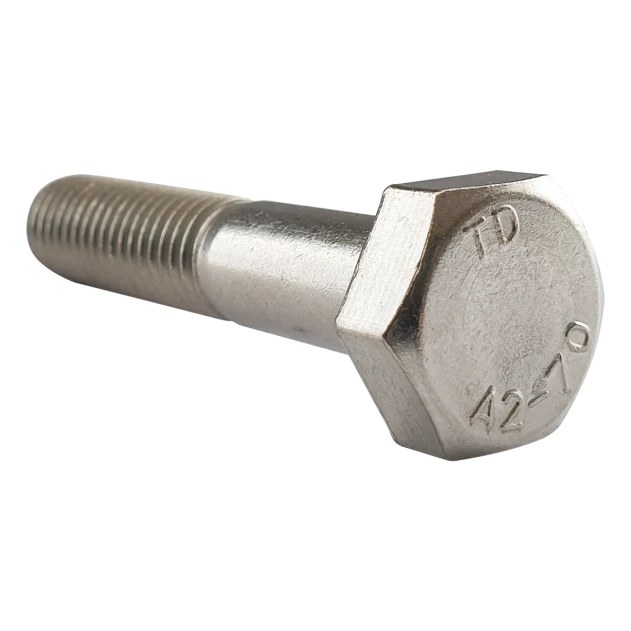

M14 Hex Bolt

M14 hex bolt for heavy-duty fastening with a hex head allowing you to apply the required torque easily with a range of conventional tools.

Manufactured in A2 stainless steel for high corrosion resistance making them a versatile choice.

The unthreaded shank below the hex head adds overall strength making the hex bolt more resistant to vibration and shear forces when installed into the correctly drilled hole.

Engineered for durability and strength, these stainless steel hex bolts are widely used across many industries by DIY enthusiasts and professionals alike for numerous applications.

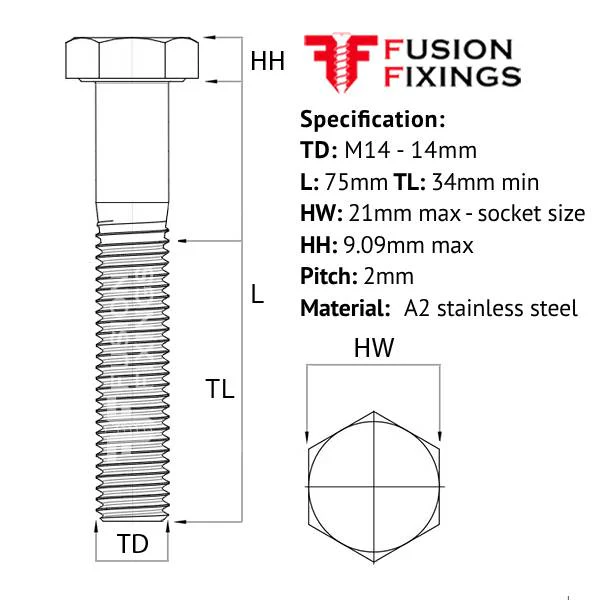

M14 hex bolt specification

• Thread diameter (TD): M14 - 14mm
• Length (L): 75mm
• Thread length (TL): 34mm min
• Head width (HW): 21mm max (socket size)
• Head height (HH): 9.09mm Max
• Thread pitch: 2mm
• Material: A2 stainless steel


Versatile and widely used, this M14 hex bolt is part of an extensive range of A2 stainless steel hex bolts held in stock at competitive prices. Quantities start from just one to as many as you require.

Do you need a FULLY THREADED bolt?

If you require a fully threaded bolt, take a look at our M14 x 75mm hex set screw (fully threaded bolt). A hex head bolt with a fully threaded shank that allows installation without the worry of running out of thread.
