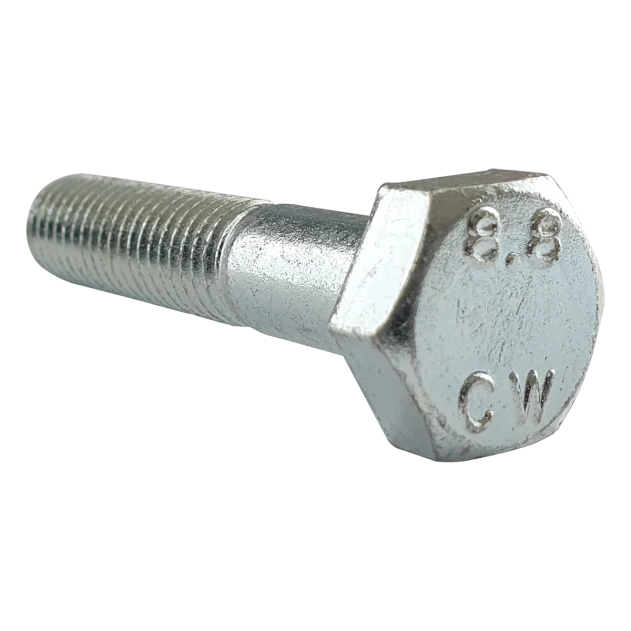

M12 x 80mm Hex Bolt (Part Threaded Bolt) BZP, DIN 931 Grade 8.8

M12 Hex Bolt

M12 x 80mm hex bolt designed for heavy-duty fastening with a hexagon head that allows higher torque to be applied with a range of conventional tools making them a versatile choice.

Manufactured in steel with a bright zinc plating (BZP), the unthreaded shank below the hex head adds overall strength making this hex head bolt more resistant to vibration and shear forces when installed into the correctly drilled hole.

Engineered for durability, strength, and ease of use, these BZP bolts are widely used across many industries by DIY enthusiasts and professional alike.

M12 hex bolt specification

• Thread diameter (TD): M12 - 12mm

• Length (L): 80mm

• Thread length (TL): 30mm

• Head width (HW): 18mm max (socket size)

• Head height (HH): 7.79mm max

• Thread pitch: 1.75mm

• Material: Bright zinc plated steel, grade 8.8

Versatile and widely used, this hex head bolt is part of an extensive range held in stock at competitive prices. Quantities start from just one to as many as you require.

Do you need a fully threaded bolt?

If you require a fully threaded hex bolt, take a look at our M12 x 80mm hex set screw (fully threaded bolt). A hex head bolt with a fully threaded shank that allows installation without the worry of running out of thread.

Need a bolt with increased corrosion resistance?

If you need a hex bolt with increased corrosion resistance, then take a look at our M12 x 80mm stainless steel hex bolt manufactured in A2 stainless steel, ideal for both internal and external applications.
