M12 x 40mm Hex Set Screw, metric fine thread (Fully Threaded Bolt) Zinc Plated DIN 961

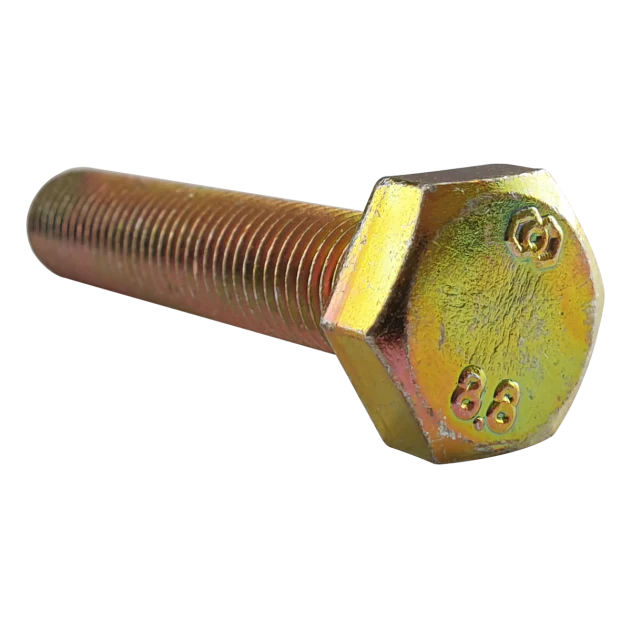

M12 hex set screw

M12 hex set screw manufactured in grade 8.8 high tensile steel coated with a zinc plated yellow passivation.

Unlike hexagon bolts, which are partially threaded, the hex set screw has a metric fine thread extending up to the underside of the head. This fully threaded shank also sees them known as fully threaded bolts in the trade.

The fully threaded shank makes these screws popular as it ensures they can be used in many situations without running out of thread.

The hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

Engineered for durability and strength the hex set screws are widely used across many industries by both DIY enthusiasts and professionals alike.

M12 hex set screw specification

• Thread diameter (TD): M12 - 12mm
• Length (L): 40mm
• Head height (HH): 7.79mm max
• Head width (HW): 19mm max
• Thread Pitch: 1.5mm
• Material: Grade 8.8 high tensile steel
• Finish: Zinc plated yellow passivation
• Conformity: DIN 961


Versatile and widely used, the comprehensive range of metric fine hex set screws available from Fusion Fixings is growing.

Quantities from just one to as many as you require, with bulk discounts across the range.

See the full range of hex set screws available from Fusion Fixings.
