M12 x 16mm Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel DIN 933

M12 hex set screw

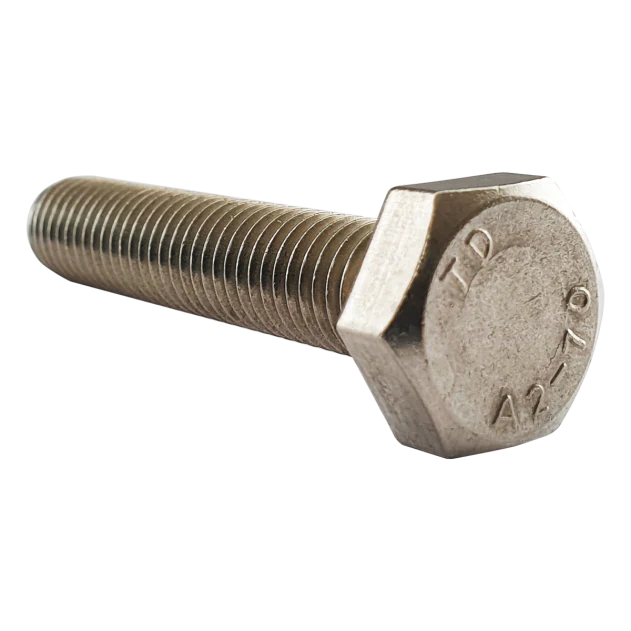

M12 set screw with a hexagonal head manufactured in A2 stainless steel offering high corrosion resistance making it ideal for internal and external uses.

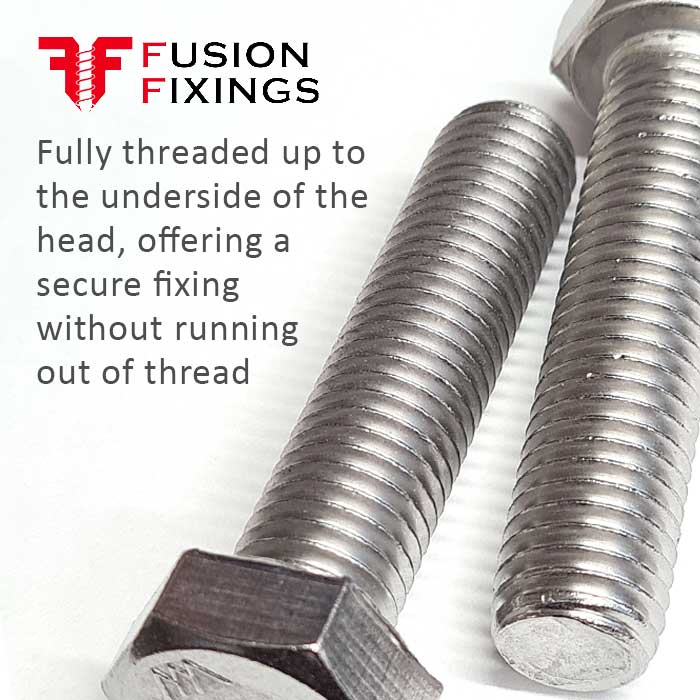

Unlike hexagon bolts, which are partially threaded, the M12 hex head set screw has a thread extending up to the underside of the head. This fully threaded shank also sees them known as fully threaded bolts in the trade.

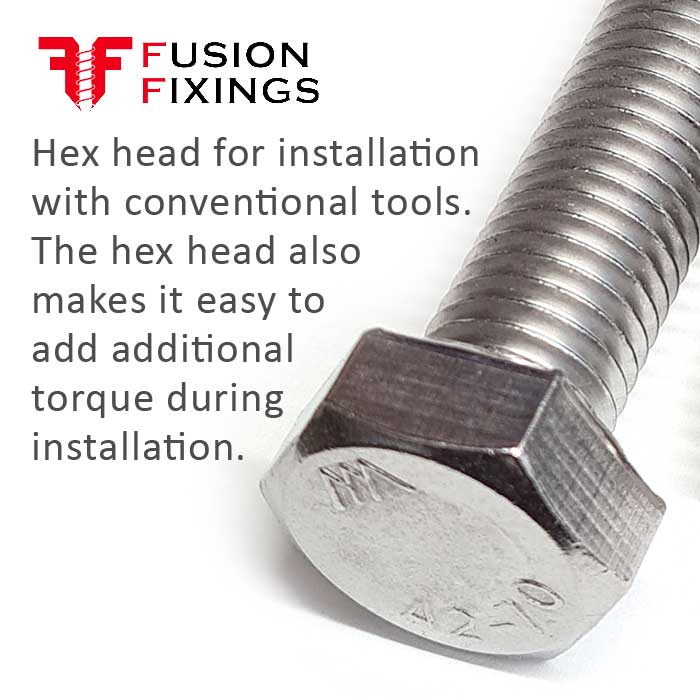

The fully threaded shank makes these screws popular as it ensures they can be used in many situations without the worry of running out of thread. Combined with a hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

Engineered for durability and strength and when combined with the M12 nuts and M12 washers, sees these stainless steel set screws widely used across many industries by both DIY enthusiasts and professionals alike.

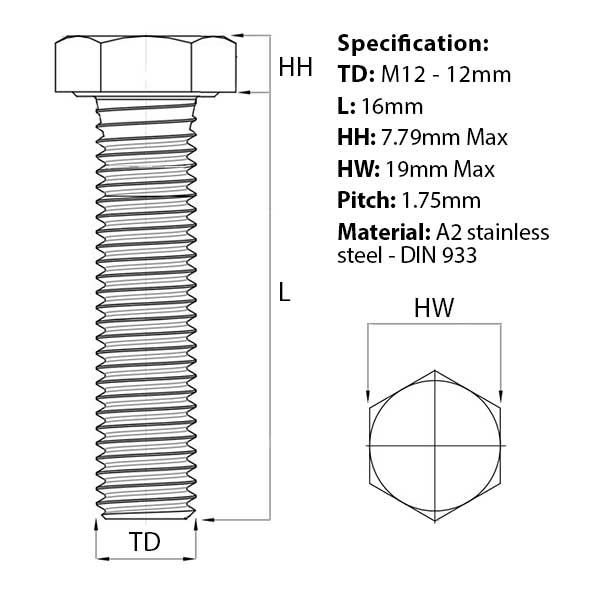

M12 hex set screw specification

• Thread diameter (TD): M12 - 12mm
• Length (L): 16mm
• Head height (HH): 7.79mm Max
• Head width (HW): 19mm Max
• Thread Pitch: 1.75mm
• Material: A2 stainless steel
• Conformity: DIN 933

Here at Fusion Fixings quantities start from just one to as many as you require to get the job done, with bulk discounts across the range. See the growing range of hex head set screws available from Fusion Fixings.
