M12 (16mm) x 50mm, Socket Shoulder Screws, Self-Colour, Grade 12.9, ISO 7379

M12 Socket Shoulder Machine Screw

High-strength engineering screw ideal for heavy duty applications, with a hex socket allowing fastening with a Hexagonal/Allen key, which sees them widely used.

Manufactured from self-colour, grade 12.9 high tensile steel. Also known as shoulder bolts and consisting of a socket cap head, an enlarged unthreaded shoulder section, and a threaded lower section.

A versatile machine screw with a shoulder section allowing it to function as a dowel, pivot, or axle, allowing movement to occur around it.

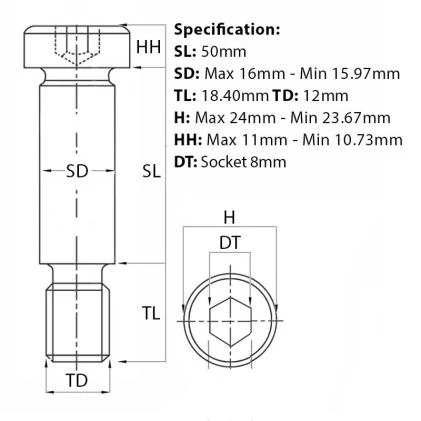

M12 Shoulder Screw Specification:

• Shoulder Length (SL): 50mm
• Shoulder Diameter (SD): Max 16mm - Min 15.973mm
• Thread Length (TL): 18.40mm
• Thread Diameter (TD): 12mm
• Thread Pitch: 1.75mm
• Head Width (H): Max 24mm - Min 23.67mm
• Head Height (HH): Max 11mm - Min 10.73mm
• Drive Type (DT): Socket 8mm
• Material: Self-Colour, Grade 12.9 steel
• Conformity: ISO 7379 standards

Conforming to ISO 7379 standards, these shouldered screws are used across many sectors and part of an extensive range available in stock at Fusion Fixings, all with bulk purchase discounts.
