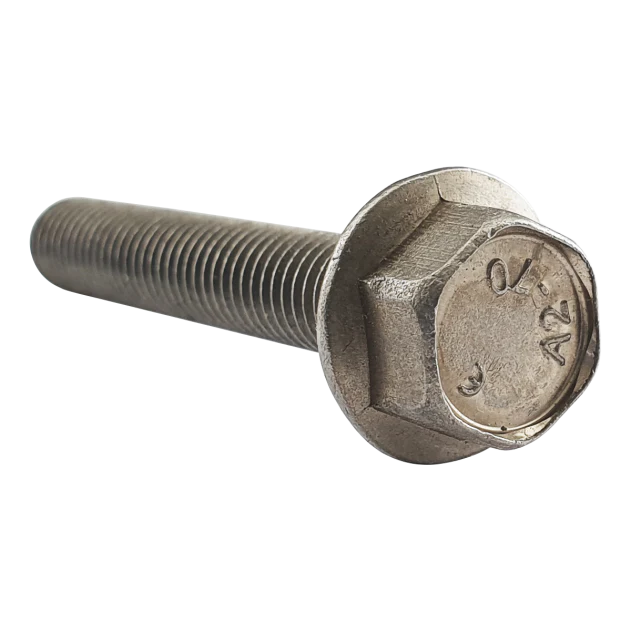

M10 x 90mm Serrated Flange Hex Bolt A2 Stainless DIN 6921

Stainless Steel Serrated Head Flange Hex Bolt M10 x 90mm

Hexagon bolt with a serrated flange head. The flanged head enables tension spread over a wider surface area whilst the serration adds to the gripping force of the fastener. This bolt has a precisely formed metric coarse threading, and is made from A2 stainless steel which is corrosion resistant.

Flange Head Bolt Specifications:

• Thread Diameter: 10mm
• Thread Pitch: 1.5mm
• Length (A): 90mm
• Spanner Size (B): 15mm
• Flange Size (C): 22.3mm
• Material: A2 Stainless Steel
• Conformity: DIN 6921

We stock a large range of serrated flange hex head bolts, all with fast shipping options and bulk buy discounts.
