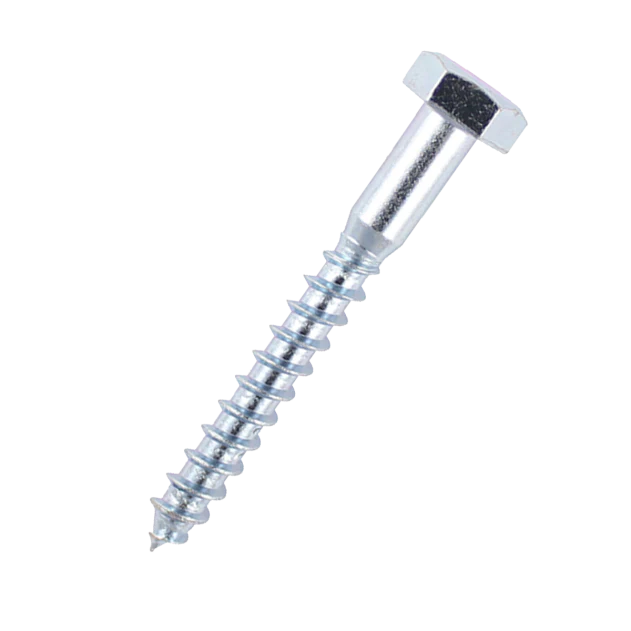

M10 x 50mm Hex Head Coach Screw BZP DIN 571

Heavy Duty Wood Screws

A strong hold in wood every time with this M10 coach screw x 50mm. Specifically designed for use with wood and larger timber projects.

Its combination of a coarse thread for great hold and pull-out resistance, along with a hexagon head that allows installation with a range of conventional tools, sees this heavy-duty M10 coach screw widely used in many sectors.

The 50mm coach screw is a robust wood screw used for both internal and external applications and part of a larger range of BZP coach screws used by professionals and DIY enthusiasts alike.

For a coach screw with higher corrosion resistance, see our range of stainless-steel coach screws.

M10 Coach Screw Specification:

• Thread Diameter (TD): M10 - 10mm
• Length (L): 50mm

• Thread Length (TL): 30mm

• Head Width (H): 17mm
• Conformity: DIN 571 Standards
• Material: Bright zinc plated steel (BZP)

FAQs about coach screws

What are hex head coach screws used for?

Hex head coach screws are heavy-duty screws designed for securing timber to timber, or timber to metal. The heavy-duty nature of the coach screw sees them commonly used in decking, fencing, roofing, and heavy joinery applications. The hexagonal head allows for higher torque using a spanner or socket for a firm, reliable hold.

How are coach screws different from coach bolts?

A coach screw had a pointed tip more like traditional screws and threads directly into wood without a nut. A coach bolt (also called a carriage bolt) has a flat tip, is used with a pre-drilled hole, and passes through the material being secured on the other side with a nut.

Can I use coach screws outside

The bright zinc plating (BZP) of these Coach Screws offers a general resistance to corrosion and isn’t suitable for long term external use.

For external use, A2 stainless steel is recommended for long term use, with A4 stainless steel offering a highest level of corrosion resistance, included the use in salt water environments.

Do I need to drill a pilot hole first?

Yes, with the heavy-duty nature of the coach screw, always pre-drill a pilot hole before installation.

Should I use a washer under the head?

It’s good practice to use a flat washer beneath the hex head as this spreads the load across a wider area and protects the timber surface.

Which material should I choose - BZP, A2, or A4 stainless steel?

The coach screws at Fusion Fixings are available in 3 material types which cover a larger range of applications.
•    BZP (Bright Zinc Plated): Ideal for indoor use or dry conditions.
•    A2 Stainless Steel: Great for outdoor projects such as fences or decking.
•    A4 Stainless Steel: Marine-grade corrosion resistance and the best choice for coastal or highly corrosive environments.

Can I use coach screws in brick, block, or concrete?

Coach screws are primarily for timber; however, they can be used in masonry for certain applications if combined with a suitable wall plug or anchor.
