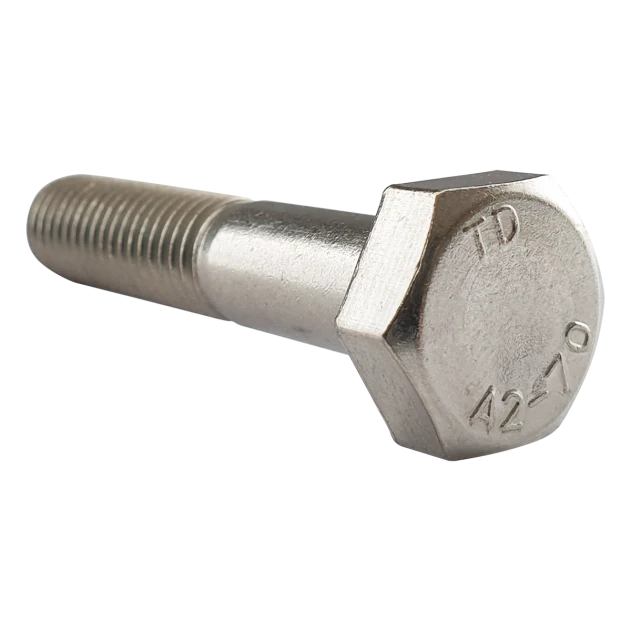

M10 x 170mm Hex Bolt (Part Threaded Bolt) A2 stainless steel, DIN 931

M10 Hex Bolt

M10 hex bolt for heavy-duty fastening with a hex head allowing you to apply the required torque easily with a range of conventional tools.

Manufactured in A2 stainless steel for high corrosion resistance making them a versatile choice.

The unthreaded shank below the hex head adds overall strength making the hex head bolt more resistant to vibration and shear forces.

Engineered for durability and strength, these stainless steel hex bolts are widely used across many industries by DIY enthusiasts and professionals alike for numerous applications.

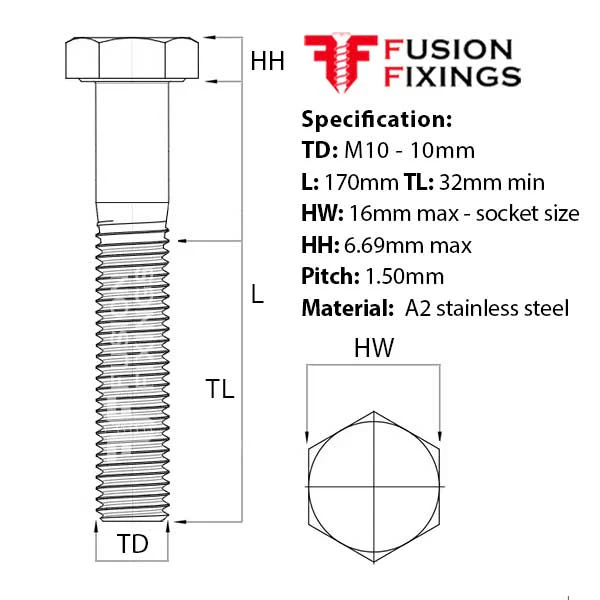

M10 hex bolt specification

• Thread diameter (TD): M10 - 10mm

• Length (L): 170mm

• Thread length (TL): 32mm min
• Head width (HW): 16mm max (socket size)

• Head height (HH): 6.69mm max

• Thread pitch: 1.50mm

• Material: A2 stainless steel

Versatile and widely used, this M10 hex bolt is part of an extensive range of hexagon head bolts held in stock at competitive prices. Quantities start from just one to as many as you require.

Do you need a FULLY THREADED bolt?

If you require a fully threaded bolt, take a look at our M10 x 170mm hex set screw. A hex bolt with a fully threaded shank which allows installation without the worry of running out of thread.
