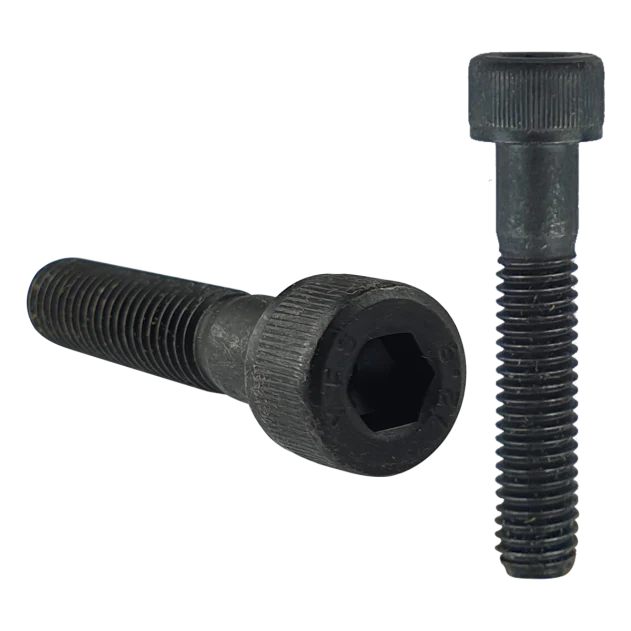

M10 x 100mm Socket Cap Head Screw, Self Colour, Grade 12.9 high tensile steel, DIN 912

M10 socket cap head screw

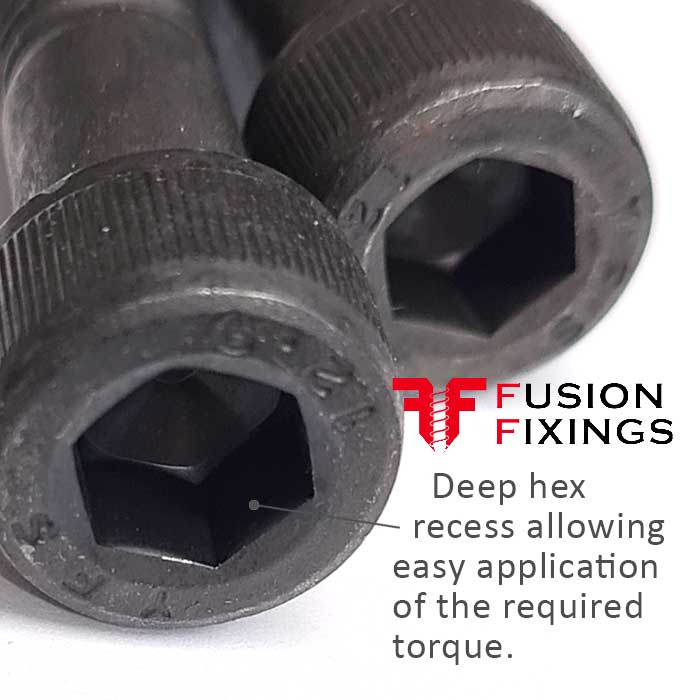

M10 cap head screw with a deep internal socket recess allowing you to apply the required torque for a secure hold.

A self-colour machine screw with a distinctive cylindrical head that’s designed to achieve high torque and manufactured from grade 12.9 high tensile steel for strength.

Installed with an Allen wrench or hex key sees them widely used including situations where space is tight and where a secure hold is needed.

Available in many sizes and lengths, these screws are used by DIY enthusiasts and professionals across many diverse sectors including automotive, aerospace, machinery, and construction.

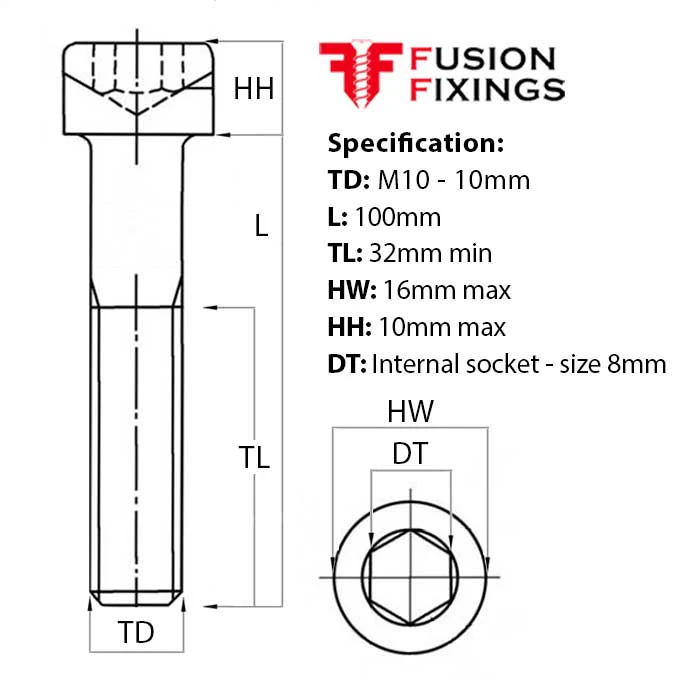

M10 socket cap head screw specification:

• Diameter (TD): M10 - 10mm

• Length (L): 100mm

• Thread length (TL): 32mm min
• Head width (HW): 16mm max

• Head height (HH): 10mm max

• Head type: Cap Head

• Recess type (DT): Internal hex drive (Size 8mm)

• Pitch: 1.50mm

• Material: Grade 12.9 high tensile steel

• Conformity: DIN 912

The M10 self-colour socket cap head screw is part of an extensive range of cap head screws available from Fusion Fixings with bulk discounts.

Looking for a cap head screw with corrosion resistance?

If you need a socket cap head screw with a high level of corrosion resistance, take a look at our A2 stainless steel M10 x 100mm socket cap head screws.

For the highest level of corrosion resistance, Fusion Fixings supply M10 x 100mm socket cap head screws in A4 stainless steel which offer a marine grade resistance to corrosion.
