M10 x 100mm Hex Bolt (Part Threaded Bolt) BZP, DIN 931 Grade 8.8

M10 Hex Bolt

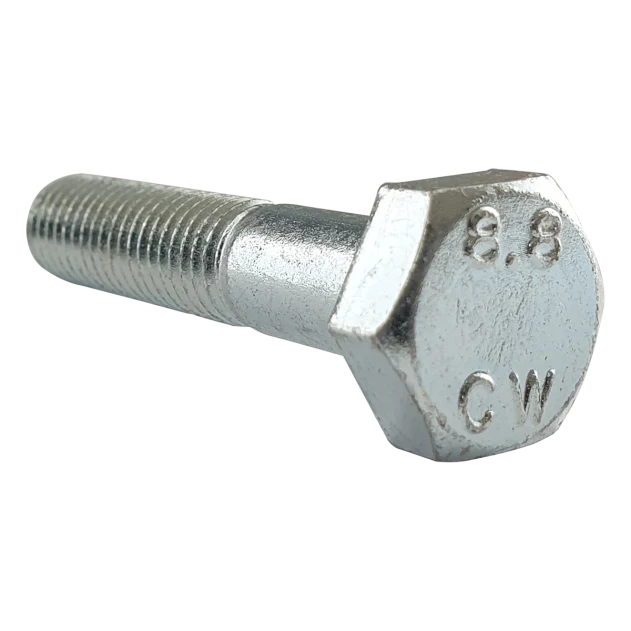

M10 hex bolt manufactured in steel with a bright zinc plating for mid-level corrosion resistance. A hex head bolt which allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

The unthreaded shank below the hex head adds to the overall strength ensuring the hexagon head bolt is more resistant to vibration and shear forces when installed into the correctly drilled hole.

Engineered for versatility and strength, these bolts are widely used by DIY enthusiasts and professional alike for numerous applications. Quantities start from just one to as many as required with bulk price discounts.

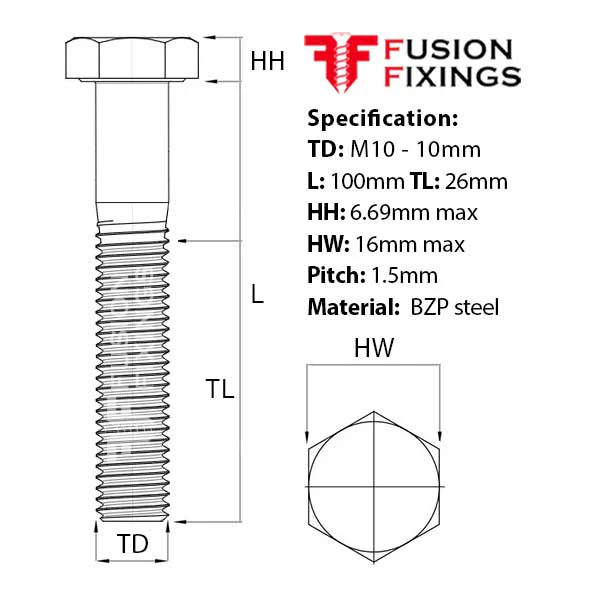

M10 hex bolt specification

• Thread diameter (TD): M10 - 10mm

• Length (L): 100mm

• Thread length (TL): 26mm

• Head width (HW): 16mm max (socket size)

• Head height (HH): 6.69mm max

• Thread pitch: 1.5mm

• Material: Bright zinc plated steel, grade 8.8

Versatile and widely used, this hexagon head bolt is part of an extensive range held in stock at competitive prices. Quantities start from just one to as many as you require.

Do you need a fully threaded bolt?

If you require a fully threaded bolt, take a look at our growing range of hex set screws.
