10mm (M6) x 100mm, Extractable Dowel Pin, Hard & Ground, Self-Colour, DIN 7979D

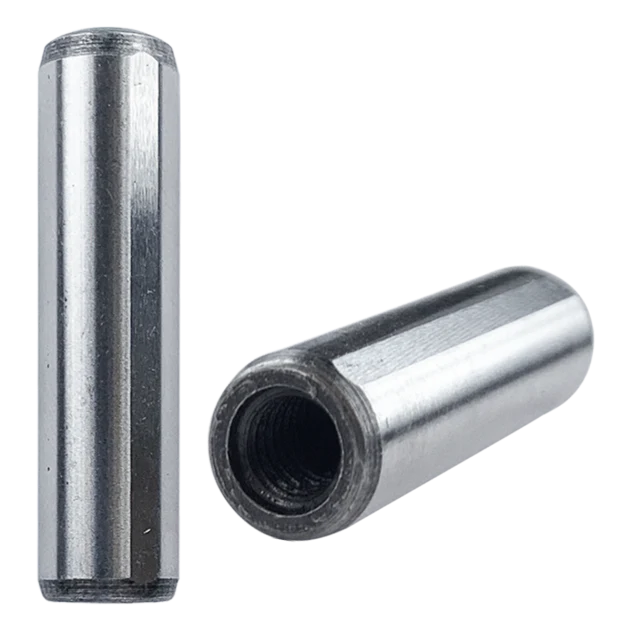

Extractable Metal Dowel Pin x 100mm
Extractable metal dowel pin, with an M6 (6mm) internal thread, ideal for accurate positioning and locating of parts. Primarily used in mould making, jigs, fixtures, and machinery.
A metric hard and ground extractable metal dowel pin with an internal thread which can be used to extract the pin after installation if needed. The dowels also have a slight flat edge to ensure air can escape when installed.

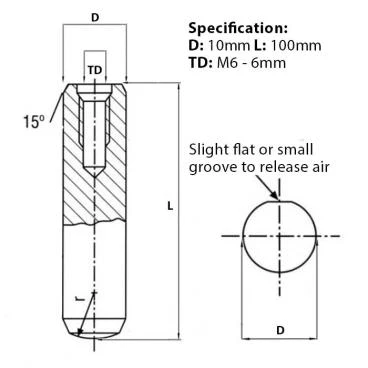

Dowel Pin Specifications:
- Diameter (D): 10mm
- Thread Diameter (TD): M6 / 6mm
- Length (L): 100mm
- Material: Hard & Ground Steel
- Conformity: DIN 7979D
Manufactured to DIN 7979D standards and part of a growing range of metal dowel pins held in stock with bulk price discounts.
Why choose Fusion Fixings?
A family run business with over 40 years of experience in the construction and fixings industry. Our aim is to bring you a range of quality, reliable, fixings and fasteners at great prices. With quantities starting from just one to as many as you like, with bulk price offers across many of our products.
Original: $1.09
-70%$1.09
$0.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Extractable Metal Dowel Pin x 100mm
Extractable metal dowel pin, with an M6 (6mm) internal thread, ideal for accurate positioning and locating of parts. Primarily used in mould making, jigs, fixtures, and machinery.
A metric hard and ground extractable metal dowel pin with an internal thread which can be used to extract the pin after installation if needed. The dowels also have a slight flat edge to ensure air can escape when installed.
Dowel Pin Specifications:
- Diameter (D): 10mm
- Thread Diameter (TD): M6 / 6mm
- Length (L): 100mm
- Material: Hard & Ground Steel
- Conformity: DIN 7979D
Manufactured to DIN 7979D standards and part of a growing range of metal dowel pins held in stock with bulk price discounts.
