8-32 UNC x 5/16” Hex Set Screw (Fully Threaded Bolt) A2 Stainless Steel

8-32 UNC Hex Set Screw

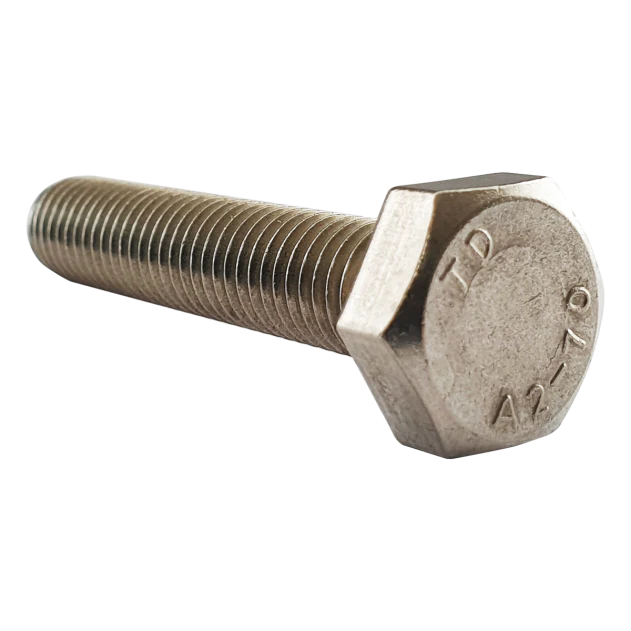

8-32 UNC x 5/16” hex head set screw, manufactured in A2 stainless steel offering high corrosion resistance. With a thread extending up to the underside of the head ensures a secure and tight fixing every time without running out of thread.

Also known as a ‘fully threaded bolt’, the hex head also allows for higher torque to be applied with a range of conventional tools making them a versatile choice.

Engineered for durability and strength and when coupled with the 8-32 UNC nuts sees these hexagon head set screws widely used across many industries by DIY enthusiats and professionals alike.

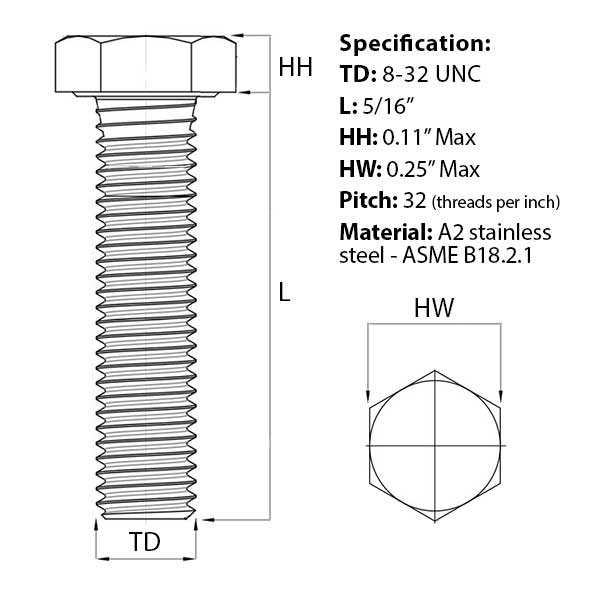

8-32 UNC set screw specification

• Thread diameter (TD): 8-32 UNC
• Length (L): 5/16″
• Head height (HH): 0.11″ max
• Head width (H): 0.25″ max
• Thread Pitch (TP): 32 (threads per inch)
• Material: A2 stainless steel
• Conformity: ASME B18.2.1

Versatile and widely used, this 8-32 UNC x 5/16” set screw is part of a comprehensive range of hex head set screws in stock at competitive price.
