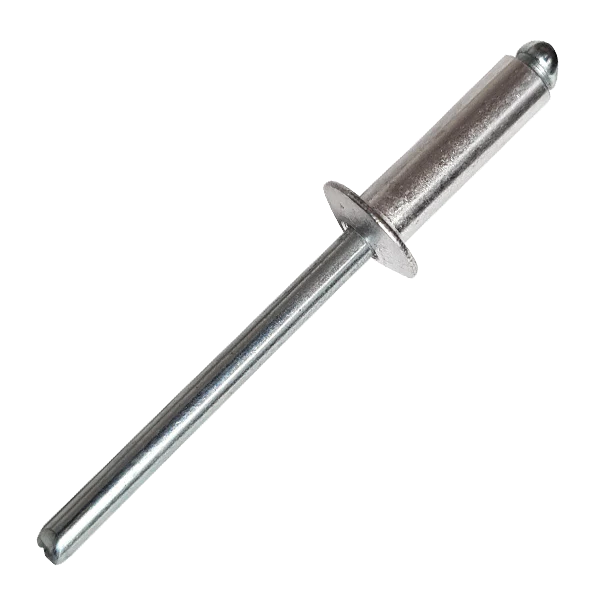

6.4 x 20mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 11 - 13.5mm

6.4mm blind rivet

6.4 x 20mm blind rivet with a grip range of 1 - 3.5mm. Designed to easily join two pieces of material together where there is no access to the back of the material.

Known as dome rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which include a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

6.4mm pop rivet specification:

• Rivet diameter (D): 6.4mm
• Body length (BL): 20mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 13mm
• Flange height (FH): 1.8mm
• Mandrel diameter (MD): 3.8mm
• Mandrel length (ML): 32mm
• Mandrel material: Steel
• Hole size: 6.5mm
• Grip range: 8.5mm - 11.5mm
• Sheer strength: 3150
• Tensile strength: 4100

Part of a growing range of blind rivets available at Fusion Fixings at competitive prices.
