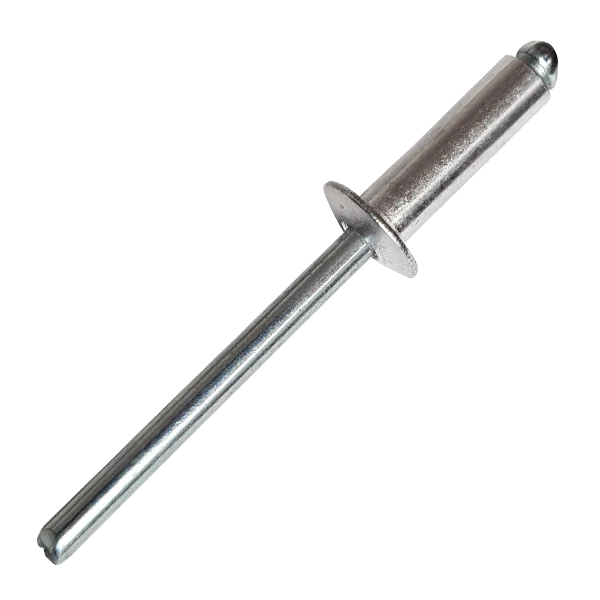

6.4 x 12mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 3.5 - 5.5mm

6.4mm blind rivet

6.4 x 12mm blind rivet with a grip range of 1 - 3.5mm. Designed to join material together where there is no access to the back of the material.

Known as dome rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which include a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

6.4mm pop rivet specification:

• Rivet diameter (D): 6.4mm
• Body length (BL): 12mm
• Head type: Dome
• Body material: Aluminium

• Flange diameter (FD): 13mm
• Flange height (FH): 1.8mm
• Mandrel diameter (MD): 3.8mm

• Mandrel length (ML): 32mm
• Mandrel material: Steel
• Hole size: 6.5mm
• Grip range: 3.5mm - 5.5mm

• Sheer strength: 3150
• Tensile strength: 4100

Part of a growing range of pop rivets available at Fusion Fixings at competitive prices.
