5 x 14mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 7.5 - 9.5mm

Dome pop rivet

5 x 14mm dome pop rivet with a grip range of 7.5 - 9.5mm. Designed to join material together where there is no access to the back of the material.

Known as blind rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which includes a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

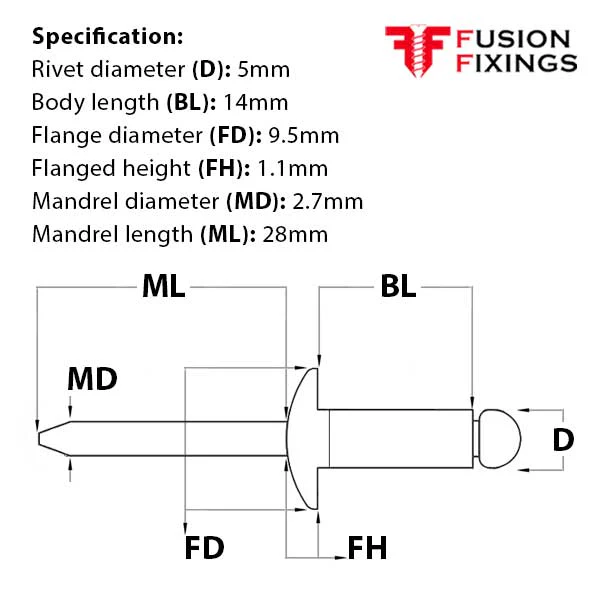

5mm pop rivet specification:

•    Rivet diameter (D): 5mm
•    Body length (BL): 14mm
•    Head type: Dome
•    Body material: Aluminium
•    Flange diameter (FD): 9.5mm
•    Flange height (FH): 1.1mm
•    Mandrel diameter (MD): 2.7mm
•    Mandrel length (ML): 28mm
•    Mandrel material: Steel
•    Hole size: 5.1mm
•    Grip range: 7.5mm - 9.5mm
•    Sheer strength: 2000
•    Tensile strength: 2800

Part of a growing range of Aluminium pop rivets available at Fusion Fixings at competitive prices.
