5/16” UNC (3/8”) x 1 1/4”, Socket Shoulder Screw, Self-Colour, Grade 12.9, ANSI B18.3

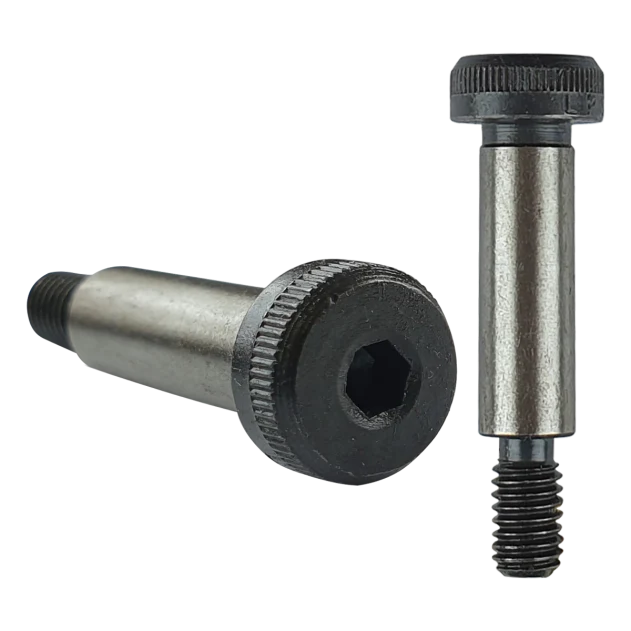

5/16” Socket Shoulder Machine Screw

A self-colour, high-strength socket shoulder screw with a ground shouldered section that functions as a dowel, pivot, or axle, allowing movement around it.

Quality engineering screw ideal for a numerous applications, with a hex socket allowing fastening with an Allen key / hex drive which sees them widely used.

Manufactured from self-colour, grade 12.9 high tensile steel. Also known as a shoulder bolt and consisting of a socket cap head, an enlarged unthreaded ground shoulder section, and a threaded lower section.

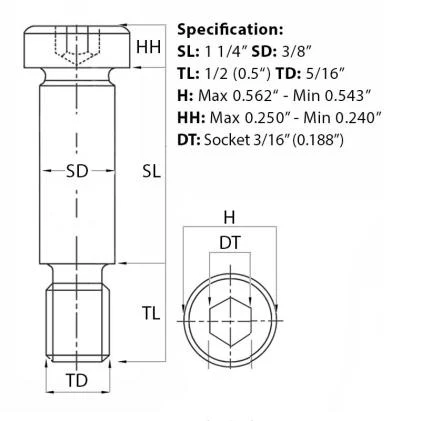

 Shoulder Screw Specification:

• Shoulder Length (SL): 1 1/4”
• Shoulder Diameter (SD): 3/8”
• Thread Length (TL): 1/2”
• Thread Diameter (TD): 5/16”
• Thread Pitch: 18
• Head Width (H): Max 0.562” - Min 0.543"
• Head Height (HH): Max 0.250” - Min 0.240”
• Drive Type (DT): Socket 3/16” (0.188")

• Material: Self-Colour, Grade 12.9 steel
• Conformity: ANSI B18.3

A shouldered machine screw and part of an extensive but growing range of UNC shoulder screws available at Fusion Fixings, all with bulk purchase discounts.
