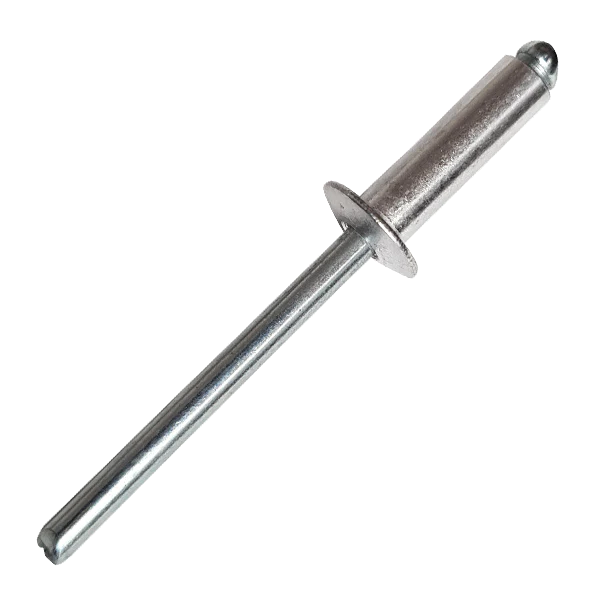

4 x 30mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 21.5 - 26mm

Dome head pop rivets

Dome pop rivets with a grip range of 21.5 - 26mm. Designed to join material together where there is no access to the back of the material.

Known as blind rivets or pop rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which includes a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple fastener that ensures a secure hold and once installed the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this pop rivet is part of a growing range available at Fusion Fixings with competitive prices

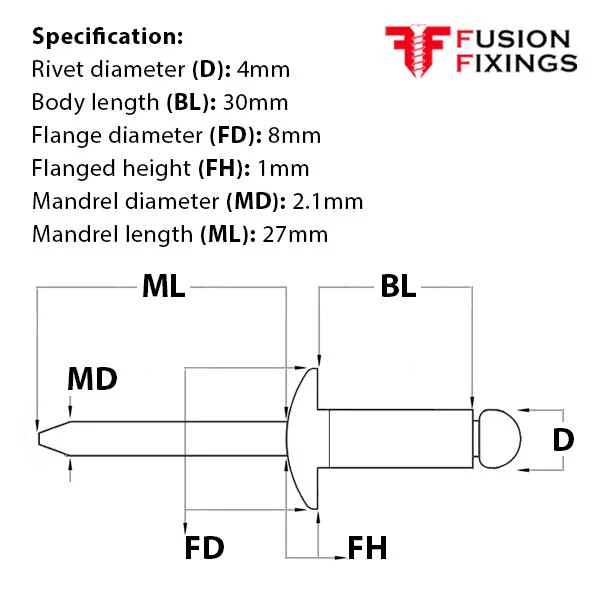

4mm pop rivet specification:

• Rivet diameter (D): 4mm
• Body length (BL): 30mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 8mm
• Flange height (FH): 1mm
• Mandrel diameter (MD): 2.1mm
• Mandrel length (ML): 27mm
• Mandrel material: Steel
• Hole size: 4.1mm
• Grip range: 21.5mm - 26mm
• Sheer strength: 1200
• Tensile strength: 1600


Part of a growing range of Aluminium pop rivets available at Fusion Fixings at competitive prices.
