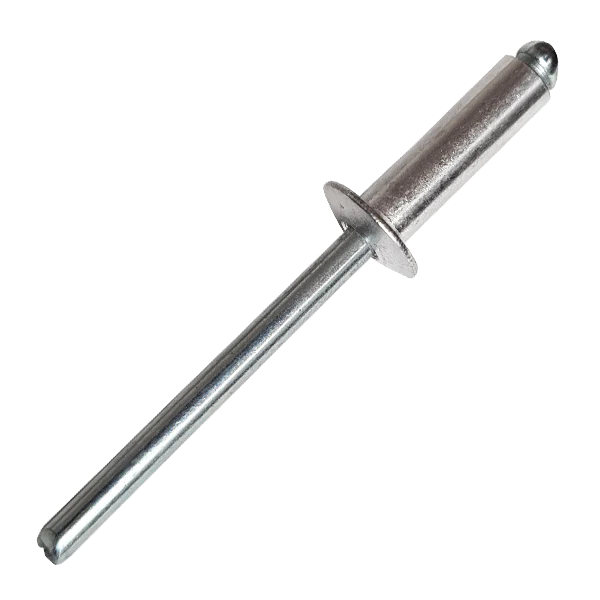

4.8 x 6mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 1 - 2m

4.8mm blind rivet

4.8 x 6mm blind rivet with a grip range of 1 - 2mm. Designed to join material together where there is no access to the back of the material.

Known as pop rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum hole fill is required and manufactured with 2 core pieces, which includes a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

An effective fastener that ensures a secure hold and once installed the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range of blind rivets available at Fusion Fixings with competitive prices.

4.8mm pop rivet specification:

• Rivet diameter (D): 4.8mm
• Body length (BL): 6mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 9.5mm
• Flanged height (FH): 1.1mm
• Mandrel diameter (MD): 2.7mm
• Mandrel length (ML): 28mm
• Mandrel material: Steel
• Hole size: 4.9mm
• Grip range: 1mm - 2mm
• Sheer strength: 1700
• Tensile strength: 2250


Part of a growing range of pop rivets available at Fusion Fixings at competitive prices.
