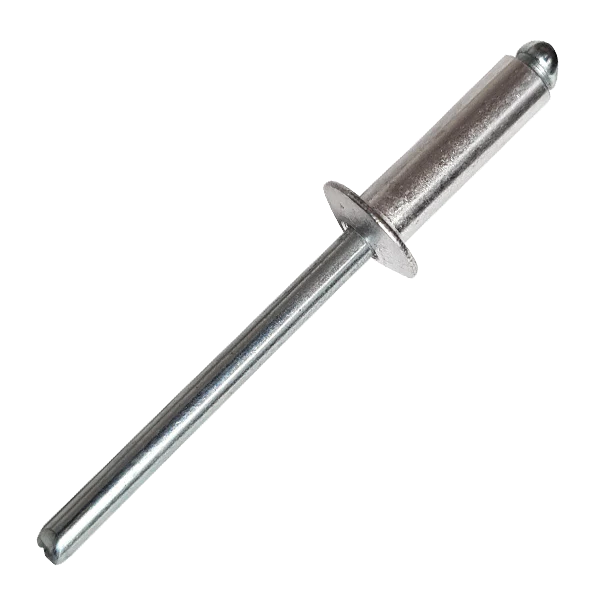

4.8 x 25mm Dome Head Pop Rivet (Blind Rivet) Aluminium - Steel, Grip Range: 17 - 20mm

Dome pop rivet

4.8 x 25mm dome pop rivet with a grip range of 17 - 20mm. Designed to join material together where there is no access to the back of the material.

Known as blind rivets or dome head rivets and manufactured with a zinc plated steel mandrel and aluminium body.

Often used when maximum clamp-up and hole fill is required and manufactured with 2 core pieces, which include a rivet body and a mandrel.

The mandrel is pulled into the rivet gun which pulls the pop rivet body to compress it against the blind side of the material.

A simple, effective threadless fastener that ensures a secure hold and once done the mandrel then snaps off to leave a clean permanent finish.

Used across many industries by DIY enthusiasts and professionals alike this dome pop rivet is part of a growing range of blind rivets available at Fusion Fixings at competitive prices.

4.8mm pop rivet specification:

• Rivet diameter (D): 4.8mm
• Body length (BL): 25mm
• Head type: Dome
• Body material: Aluminium
• Flange diameter (FD): 9.5mm
• Flange height (FH): 1.1mm
• Mandrel diameter (MD): 2.7mm
• Mandrel length (ML): 28mm
• Mandrel material: Steel
• Hole size: 4.9mm
• Grip range: 17mm - 20mm
• Sheer strength: 1700
• Tensile strength: 2250

Part of a growing range of Aluminium pop rivets available at Fusion Fixings at competitive prices.
