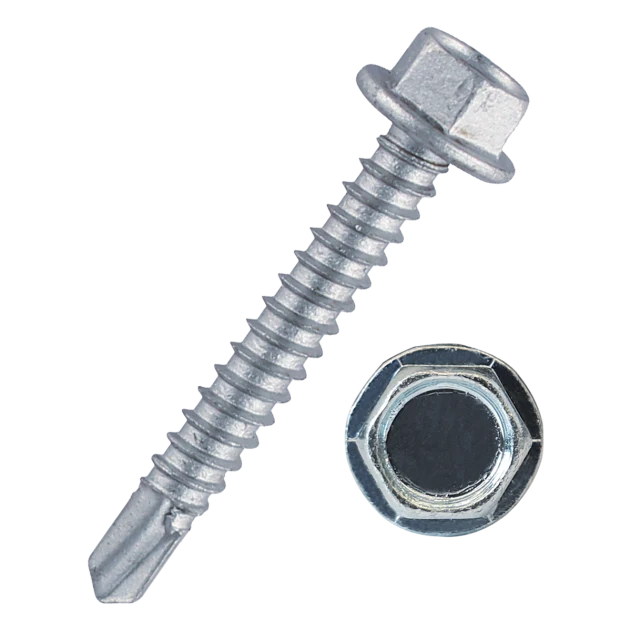

4.8mm (No.10) x 45mm, flanged hex head self drilling screw (TEK), BZP, DIN 7504 K

45mm self-drilling screw

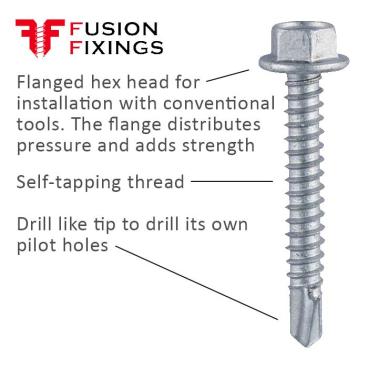

Self-drilling screw with a drill like tip eliminating the need for pre-drilled holes and a self-tapping thread for a strong hold.

Primarily used when fixing thin metal, aluminium, plastics, fiberglass and polycarbonate to other materials without a pilot hole or use of a drill.

A Tek screw designed with a flanged hex head for installation with a range of standard tools which sees them widely used.

Manufactured from steel with a bright zinc plating (BZP) for a medium level of corrosion and conforms to DIN 7504 K standards.

An impressive combination that makes for a versatile screw when ease of installation, speed, and reliability are needed.

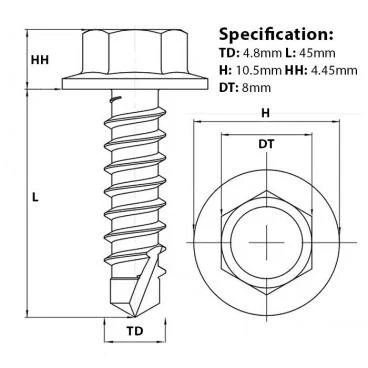

45mm self-drilling screw specification

• Thread Diameter (TD): 4.8mm
• Length (L): 45mm
• Head Width (H): 10.5mm x Head Height (HH): 4.45mm
• Drive Type: (DT): 8mm
• Material: Steel
• Finish: Bright zinc plated (BZP)
• Conforms: DIN 7504 K

Part of a growing range of self-drilling screws held in stock with various head types and bulk discounts across the range.

Note - Drill point wander is a possibility with the self-drilling screws, but this can be eliminated by using a very quick centre punch indent.
